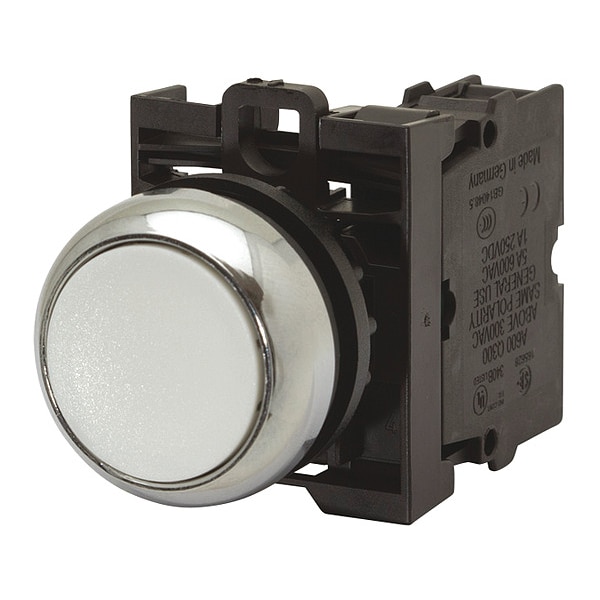

Palanca de interruptor de selección de posición de mamá estilo sil 3-pos.
| Item | Illuminated Push Button |
|---|---|
| Size | 22.5 mm |
| Type of Operator | Flush Button |
| Action | Maintained |
| Contact Form | 2 NO |
| Color | White |
| NEMA Rating | 4X |
| Bezel Material | Nylon |
| IP Rating | IP69K, IP67 |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| AC Contact Rating | 6 A @ 240 V |
| Voltage | 85 to 264 V |
| Application | Pushbutton |
| Lamp Type | LED |
| Terminal Connection | Screw Clamp |
| Series | M22 |
| Number of Operators | 1 |
| Legend | No Legend |
| DC Contact Rating | 3 A @ 24 V |
| Lamp Module Type | Full Voltage |
| Contact Type | 2NO |
| Bezel | Silver Coated |
| Legend Markings | No Legend |
| Legend/Background Color | No Legend/White |
| Product Type | Push Button Operators |
| Product Length/Depth | 1 in |
| Number Of Positions | 3 |
| Illumination | Illuminated |
| Compliances | CE Marked |
| Product Height | 3/4 in |
| Product Width | 3/4 in |
| Button color | Green |
| Actuator | Knob |
| Operating Cycles | Light: 100,000, button: 100,000 |
| Actuator function | Momentary |
| Type | switch |
| Environmental rating | IP66, NEMA 4X, NEMA 13 |
| Certifications | CCC Marked |
| Product Name | Eaton M22 modular pushbutton |
| Voltage Rating | 85-264 V |
| Special Features | M22 series |
| Contact Configuration | 2 NO |
| Operator Voltage Rating - Maximum | 264 V |
| Maintained Action Release | Push/Push |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| Operator Material | Plastic |
| Head Color | White |
| Head Material | Plastic |
| Overall Height | 1 in |
| Push Button Style | Flush |
| Manufacturer Warranty Length | 1 yr |
| Mechanical Operating Durability | 1.00 x 10^6 |
| Operating Temperature - Minimum | -13 Degrees F |
| Operator Illumination | Illuminated |
| Operating Temperature - Maximum | 158 Degrees F |
| Panel Cutout Diameter | 22 mm |
| Overall Width | 1 in |
| Lamp Voltage - Maximum | 264 V AC/DC |
| Number of Indicator Lights | 0 |
| Overall Depth | 2.26 in |
| Resistance Properties | Corrosion Resistant |
| Mushroom Head Diameter | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Package Quantity | 1 |
