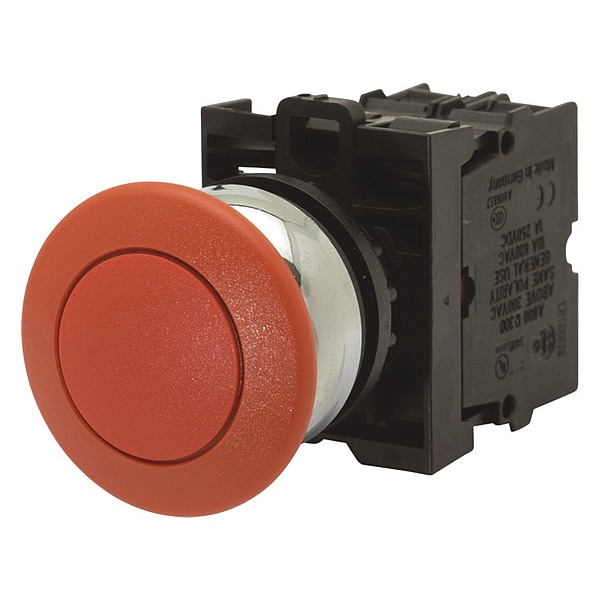

Interruptor de selección de 3 posiciones para mamá estilo palanca de silicona.
| Item | Mushroom Head Push Button |
|---|---|
| Size | 22.5 mm |
| Contact Form | 1NC |
| Action | Maintained |
| Bezel Material | Nylon |
| IP Rating | IP69K, IP67 |
| Terminal Connection | Screw Clamp |
| Number of Operators | 1 |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| Series | M22 |
| DC Contact Rating | 3 A @ 24 V |
| AC Contact Rating | 6 A @ 230 V |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Environmental rating | IP66, NEMA 4X, NEMA 13 |
| Illumination | Illuminated |
| Bezel | Silver |
| Certifications | CCC Marked |
| Operating Cycles | Light: 100,000, button: 100,000 |
| Number Of Positions | 3 |
| Type | switch |
| Product Width | 1.17 in |
| Button color | white |
| Actuator function | Momentary |
| Product Length/Depth | 1.17 in |
| Actuator | Knob |
| Compliances | GoST-R |
| Product Height | 1.06 in |
| Actuator Color | Red |
| Degree Of Protection | NEMA 4X;NEMA 13 |
| Product Name | Eaton M22 modular pushbutton |
| Contact Configuration | 1 NC |
| Operating Mode | Maintained |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Operator Illumination | Non-Illuminated |
| Maintained Action Release | Push/Pull |
| Overall Height | 1 in |
| Mechanical Operating Durability | 1.00 x 10^6 |
| Lamp Voltage - Maximum | Not Applicable |
| Operating Temperature - Minimum | -13 Degrees F |
| Manufacturer Warranty Length | 1 yr |
| Head Material | Plastic |
| Mushroom Head Diameter | 40 mm |
| Operator Material | Plastic |
| Number of Indicator Lights | 0 |
| Push Button Style | Mushroom Head |
| Head Color | Red |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| Resistance Properties | Corrosion Resistant |
| Overall Depth | 2.77 in |
| Product Type | Push Button Operators |
| Overall Width | 1 in |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Maximum | 158 Degrees F |
| Package Quantity | 1 |
