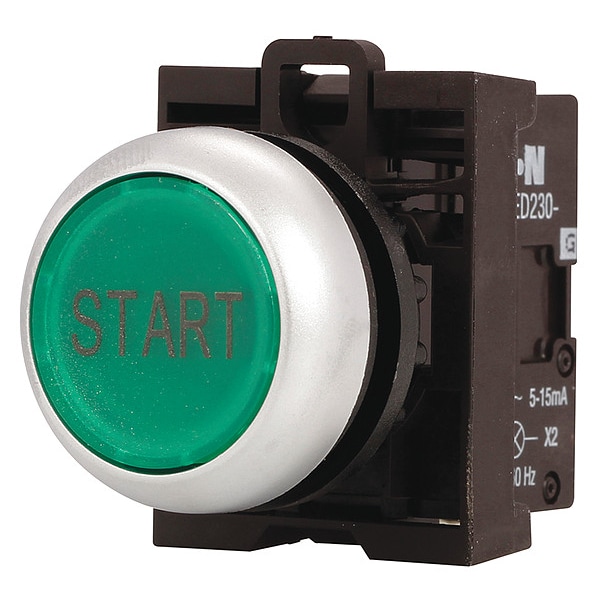

Madre enferma de plata con baño extendido verde, 22.5 mm, Verde.
| Action | Momentary |
|---|---|
| Size | 22.5 mm |
| Head Material | Plastic |
| NEMA Rating | 4X,13 |
| Lamp Voltage | Dependent on Module Used |
| Type of Operator | Flush Button |
| Lamp Type | LED |
| Color | Green |
| Bezel | Silver |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Flush Push Button |
| Bezel Material | Silver |
| Replacement Lamp | Module Not Included |
| Terminal Connection | Screw Clamp |
| Series | M22 |
| IP Rating | IP67, IP69K |
| Lamp Module Type | No Lamp Module Included |
| Features | Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter |
| Basic Material | Plastic |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Type | 22.5 mm Modular |
| Lamp Module Voltage | Module Not Included |
| Environmental rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Special features | M22 series |
| Certifications | CSA Certified |
| Application | Pushbutton |
| Illumination | Illuminated |
| Compliances | Bureau Veritas |
| Product Length/Depth | 1.17 in |
| Button color | Red |
| Actuator | button, Flush |
| Actuator function | Maintained |
| Product Width | 1.17 in |
| Operating cycles | 1 million |
| Product Height | 0.39 in |
| Overall Width | 0.39 in |
| Hazardous Location Specification | Not Rated |
| Lamp Voltage - Maximum | Not Applicable |
| Push Button Style | Flush |
| Operator Illumination | Illuminated |
| Manufacturer Warranty Length | 1 yr |
| Panel Cutout Diameter | 22 mm |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Operator Material | Polycarbonate |
| Legend Background Color | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Product Type | Push Button Operators |
| Number of Indicator Lights | 1 |
| Overall Height | 1.17 in |
| Operating Temperature - Maximum | 158 deg F |
| Overall Depth | 1.17 in |
| Maintained Action Release | Not Applicable |
| Head Color | Green |
| Legend Color | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
