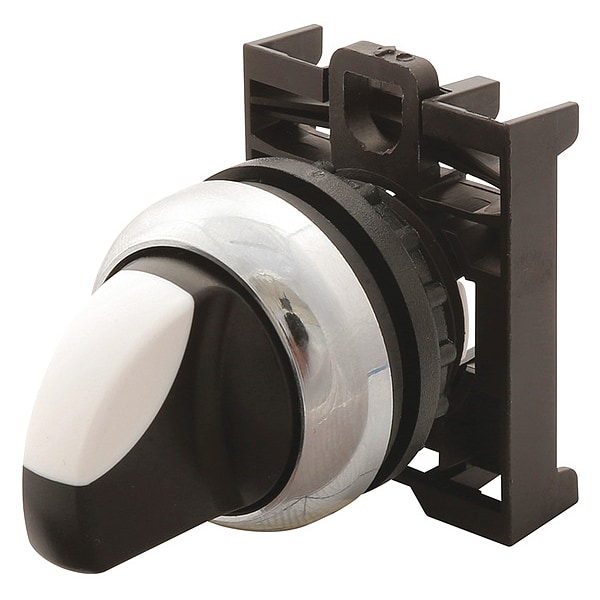

Montaje en montaña de palanca de interruptor de estilo de selección dulce de bajo voltaje.
| Item | Short-Handled Selector Switch |
|---|---|
| Size | 22.5 mm |
| Action | Maintained, Momentary |
| Cam | No Cam Needed |
| Operator Head Material | Polycarbonate |
| Bezel Material | Silver |
| Series | M22 |
| IP Rating | IP69K, IP67, IP66 |
| Bezel | Silver |
| Product Height | 1.06 in |
| Actuator function | Momentary |
| Certifications | CSA Certified |
| Illumination | Illuminated |
| Product Length/Depth | 1.17 in |
| Compliances | GoST-R |
| Environmental rating | IP66, NEMA 4X, NEMA 13 |
| Actuator | Knob |
| Button color | Yellow |
| Operating Cycles | Light: 100,000, button: 100,000 |
| Product Width | 1.17 in |
| Type | switch |
| Number Of Positions | 2 |
| Product Name | Eaton M22 modular pushbutton |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Overall Width | 1 in |
| Includes Operator Key | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Overall Height | 1 in |
| Operator Head Type | Short-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Overall Depth | 2.78 in |
| Key Removal Position | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 3rd Position | No Third Position |
| Operator Head Color | Black |
| Switch Function @ 4th Position | No Fourth Position |
| Package Quantity | 1 |
