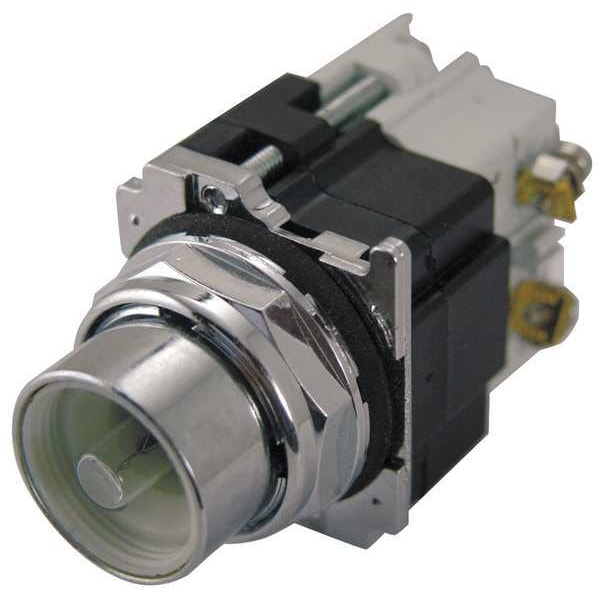

Operador de botón pulsador Illum, 30mm, sin tapa
| Size | 30 mm |
|---|---|
| Item | Flush Push Button |
| Legend | Not Applicable |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Color | No Cap |
| Terminal Connection | Screw Clamp |
| Lamp Type | Incandescent |
| Head Material | Plastic |
| Basic Material | Metal |
| Bezel | Metal |
| Lamp Module Voltage | 277 V AC |
| Replacement Lamp | 4VCW2 |
| Lamp Module Type | Transformer |
| Type of Operator | Extended Button |
| Lamp Voltage | 6V AC |
| Action | Momentary |
| IP Rating | IP65 |
| Standards | CE, CSA, UL Listed |
| NEMA Rating | 12, 3R, 4X |
| Number of Operators | 1 |
| Bezel Material | Zinc Die Cast |
| Type | 30.5 mm, Heavy-Duty |
| Mounting method | Flush |
| Compliances | CE Marked |
| Series | 10250T |
| Product Height | 1-3/4 in |
| Operating Mode | Momentary |
| Light unit type | Incandescent, transformer |
| Product Width | 2.38 in |
| Illumination | Illuminated |
| Rating | NEMA 12 |
| Light unit voltage | 277 Vac |
| LED lamp number | #755 |
| Product Length/Depth | 2-1/2 in |
| Certifications | UL Listed |
| Product Name | Eaton 10250T pushbutton |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Panel Cutout Diameter | 30 mm |
| Head Color | Not Applicable |
| Legend Background Color | Not Applicable |
| Overall Height | 1-3/4 in |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Overall Width | 2.38 in |
| Maintained Action Release | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Legend Color | Not Applicable |
| Operator Material | Polymer |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Lamp Voltage - Maximum | 277 V AC |
| Manufacturer Warranty Length | 1 yr |
| Number of Indicator Lights | 1 |
| Operator Illumination | Illuminated |
| Operating Temperature - Minimum | 1 deg F |
| Overall Depth | 2-1/2 in |
| Operating Temperature - Maximum | 150 deg F |
| Package Quantity | 1 |
