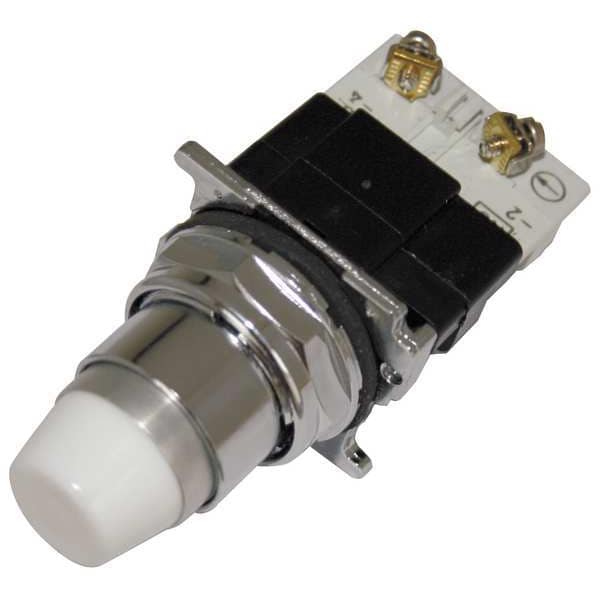

Botón de empuje iluminado, 1 normal abierto/1 normal cerrado, 120VCA.
| Size | 30 mm |
|---|---|
| Item | Illuminated Push Button |
| Features | Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs |
| Color | White |
| Voltage | 120 V AC |
| Bezel | Chrome Plated Zinc Die Cast |
| Action | Momentary |
| Contact Rating | 10A @ 600V AC/DC |
| Lamp Voltage | 120V AC |
| Lamp Type | Incandescent |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Number of Operators | 1 |
| Standards | CE, CSA, UL Listed |
| IP Rating | IP65 |
| Lamp Module Type | Resistor |
| Type of Operator | Round Button |
| Terminal Connection | Screw Clamp |
| Replacement Lamp | Mfr. No. 28-3044 |
| Basic Material | Metal |
| Head Material | Metal |
| Contact Form | 1NO/1NC |
| Lamp Module Voltage | 120 V AC |
| Contact Type | 1NO, 1NC |
| Product Type | Push Button Operators |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Type | Oiltight, 30.5 mm Heavy-Duty Watertight |
| Application | Pushbutton |
| Special Features | 10250T series |
| Operating Mode | Momentary |
| Product Length/Depth | 2.87 in |
| Product Height | 1.38 in |
| Product Width | 1.38 in |
| Series | 10250T |
| Light unit voltage | 120 Vac/dc |
| Actuator color | White |
| Rating | NEMA 12 |
| Certifications | UL Listed |
| Compliances | CE Marked |
| Contact configuration | 1 NO-1 NC |
| Actuator | Extended |
| Illumination | Illuminated |
| Light unit type | Incandescent, resistor |
| Actuator material | Plastic |
| Product Name | Eaton 10250T pushbutton |
| Overall Width | 1.38 in |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Operator Illumination | Illuminated |
| Overall Depth | 2.87 in |
| AC Contact Rating | 10 A @ 600 V |
| Overall Height | 1.38 in |
| Operator Voltage Rating - Maximum | 120 V AC/DC |
| Head Color | White |
| Lamp Voltage - Maximum | 120 V AC/DC |
| DC Contact Rating | 5 A @ 250 V |
| Mushroom Head Diameter | Not Applicable |
| Number of Indicator Lights | 0 |
| Operating Temperature - Maximum | 150 deg F |
| Push Button Style | Extended |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Operator Material | Metal |
| Panel Cutout Diameter | 30 mm |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Minimum | 1 deg F |
| Package Quantity | 1 |
