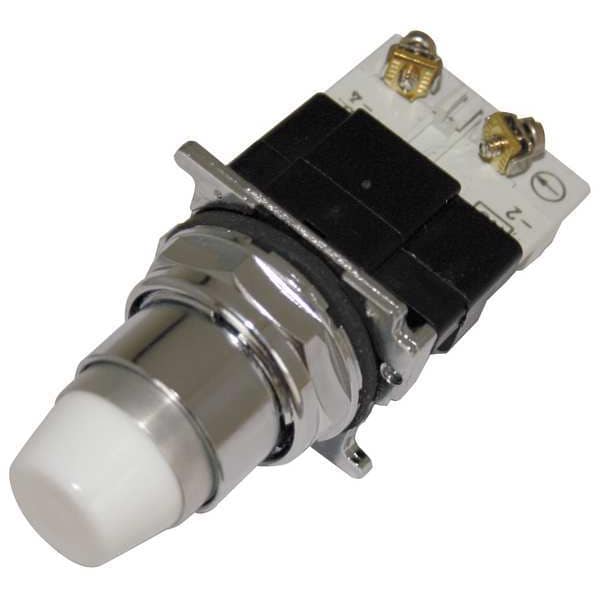

Botón pulsador iluminado, 1NA/1NC, 24VCA/CC
| Size | 30 mm |
|---|---|
| Item | Illuminated Push Button |
| Features | Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs |
| Color | White |
| Voltage | 24 V DC |
| IP Rating | IP65 |
| Lamp Module Voltage | 24V AC/DC |
| Lamp Type | LED |
| Terminal Connection | Screw Clamp |
| Contact Rating | 10A @ 600V AC/DC |
| Lamp Module Type | Full Voltage |
| Type of Operator | Round Button |
| Head Material | Metal |
| Lamp Voltage | 24V AC/DC |
| Action | Momentary |
| Bezel | Chrome Plated Zinc Die Cast |
| Number of Operators | 1 |
| Replacement Lamp | Mfr. No. E22LED024WN |
| Contact Form | 1NO/1NC |
| Contact Type | 1NO, 1NC |
| Standards | CE, CSA, UL Listed |
| Basic Material | Metal |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Product Type | Push Button Operators |
| Type | Oiltight, 30.5 mm Heavy-Duty Watertight |
| Application | Pushbutton |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Certifications | CSA Certified |
| Actuator material | Plastic |
| Actuator | Extended |
| Series | 10250T |
| Product Width | 1.59 in |
| Illumination | Illuminated |
| Special Features | 10250T series |
| Operating Mode | Momentary |
| Light unit voltage | 24 Vac/dc |
| Product Height | 1.78 in |
| Light unit type | LED, full voltage |
| Rating | NEMA 12 |
| Product Length/Depth | 1.63 in |
| Contact configuration | 1 NO-1 NC |
| Compliances | CE Marked |
| Actuator color | White |
| Product Name | Eaton 10250T pushbutton |
| Push Button Style | Extended |
| Mushroom Head Diameter | Not Applicable |
| Operating Temperature - Maximum | 150 deg F |
| Panel Cutout Diameter | 30 mm |
| Head Color | White |
| AC Contact Rating | 10 A @ 600 V |
| Operating Temperature - Minimum | 1 deg F |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Number of Indicator Lights | 0 |
| Manufacturer Warranty Length | 1 yr |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Operator Material | Metal |
| Overall Depth | 1.63 in |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Overall Width | 1.59 in |
| Operator Voltage Rating - Maximum | 120 V AC/DC |
| Overall Height | 1.78 in |
| DC Contact Rating | 5 A @ 250 V |
| Operator Illumination | Illuminated |
| Package Quantity | 1 |
