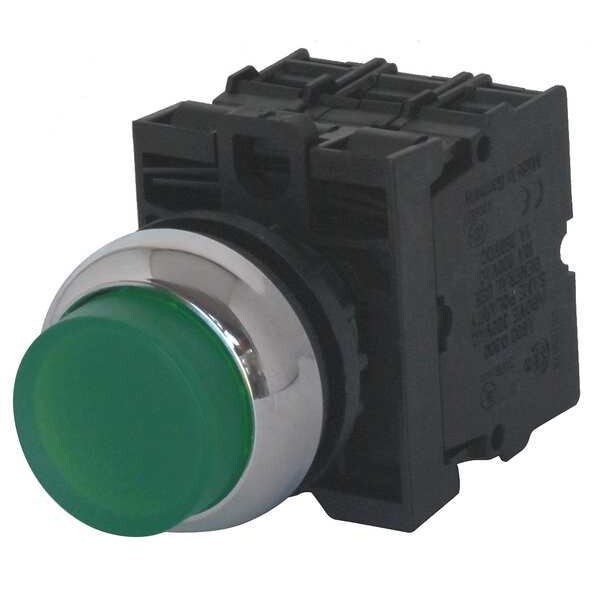

Botón de presión iluminado, 22 mm, 2 contactos normalmente abiertos, color verde.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | Extended Button |
| Lamp Type | LED |
| Color | Green |
| Contact Form | 2NO |
| Bezel | Die Cast Aluminum |
| Number of Operators | 1 |
| Contact Rating | 3A @ 24 DC, 6A @ 230V AC |
| Item | Illuminated Push Button |
| Bezel Material | Metal |
| NEMA Contact Rating Designation | A600 |
| Basic Material | Metal |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Terminal Connection | Screw Clamp |
| IP Rating | IP66, IP67, IP69K |
| Lamp Module Voltage | 264 V AC |
| Lamp Module Type | Full Voltage |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| AC Contact Rating | 6 A @ 240 V |
| Series | M22 |
| DC Contact Rating | 3 A @ 24 V |
| Type | 22.5 mm RMQ-Titan Modular |
| Product Type | Push Button Operators |
| Actuator | Flush |
| Actuator function | Momentary |
| Product Length/Depth | 1.17 in |
| Button color | green |
| Special features | M22 series |
| Application | Pushbutton |
| Enclosure | NEMA 4X |
| Operating mode | Momentary |
| Light color | Green |
| Illumination | Illuminated |
| Product Height | 1.17 in |
| Product Width | 0.39 in |
| Contact configuration | 2 NO |
| Light unit voltage | 85-264 Vac/dc |
| Environmental rating | IP67, IP69K (IP66 key-release) |
| Certifications | Contact Manufacturer |
| Product Name | Eaton M22 modular pushbutton |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Push Button Style | Extended |
| Mushroom Head Diameter | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Overall Depth | 2.56 in |
| Resistance Properties | Corrosion Resistant |
| Operator Material | Metal |
| Head Color | Green |
| Panel Cutout Diameter | 22 mm |
| Overall Width | 1 in |
| Operator Illumination | Illuminated |
| Lamp Voltage - Maximum | 264 V AC/DC |
| Number of Indicator Lights | 0 |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Overall Height | 1 in |
| Package Quantity | 1 |
