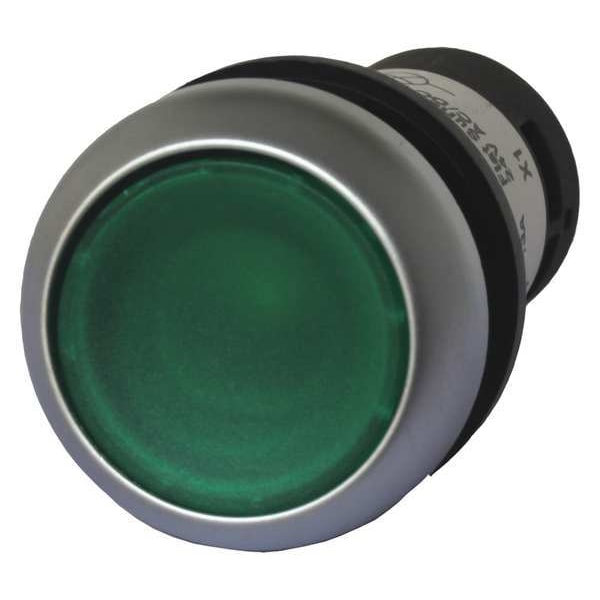

Botón pulsador iluminado, 22mm, verde.
| Item | Illuminated Push Button |
|---|---|
| Size | 22 mm |
| Features | Completely Sealed |
| Color | Green |
| IP Rating | IP69K, IP67 |
| Basic Material | Plastic |
| Number of Operators | 1 |
| Terminal Connection | Screw Clamp |
| Head Material | Plastic |
| Contact Form | 1NO |
| Lamp Voltage | 120 |
| Lamp Module Voltage | 120 V AC |
| NEMA Contact Rating Designation | A600 |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24V DC |
| Standards | CSA, DIN VDE 0600, EN 60947, IEC-60947, UL Listed |
| Type of Operator | Flush Button |
| Bezel | Silver Coated Polycarbonate |
| Lamp Type | LED |
| Action | Momentary |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Lamp Module Type | Full Voltage |
| Product Type | Push Button Operators |
| Type | Pushbutton |
| Bezel Material | Nylon |
| Voltage rating | 120 V |
| Compliances | DIN VDE 0600 |
| Actuator | Flush button |
| Indicator type | LED |
| Series | C22 |
| Product Width | 54.6 in |
| Contact configuration | 1 NO |
| Product Length/Depth | 54.6 in |
| Certifications | UL Listed |
| Button color | Green |
| Actuator function | Momentary |
| Product Height | 1.17 in |
| Illumination | Illuminated |
| Product Name | Eaton C22 compact pushbutton |
| Overall Width | 54.6 in |
| Operator Material | Plastic |
| Operating Temperature - Maximum | 158 deg F |
| AC Contact Rating | 1.5 A @ 230 V |
| Operating Temperature - Minimum | -13 deg F |
| Resistance Properties | Corrosion Resistant |
| Mushroom Head Diameter | Not Applicable |
| Overall Depth | 54.6 in |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Number of Indicator Lights | 0 |
| Manufacturer Warranty Length | 1 yr |
| Head Color | Green |
| NEMA Enclosure Rating | 4X, 12, 3, 13, 1 |
| Lamp Voltage - Maximum | 120 V AC |
| Operator Illumination | Illuminated |
| Operator Voltage Rating - Maximum | 120 V |
| Push Button Style | Flush |
| Panel Cutout Diameter | 22 mm |
| DC Contact Rating | 3 A @ 24 V |
| Overall Height | 1.17 in |
| Package Quantity | 1 |
