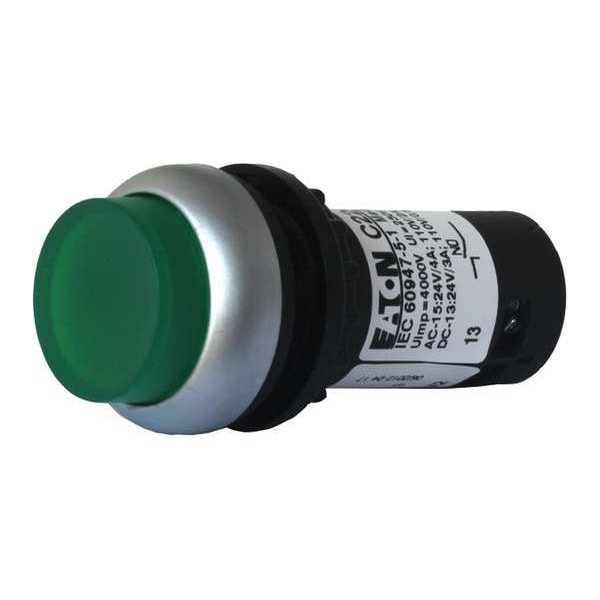

Botón de presión iluminado, 22mm, verde.
| Item | Illuminated Push Button |
|---|---|
| Size | 22 mm |
| Color | Green |
| IP Rating | IP69K, IP67 |
| Terminal Connection | Screw Clamp |
| Action | Momentary |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Lamp Module Type | Full Voltage |
| Head Material | Polycarbonate |
| Basic Material | Plastic |
| NEMA Contact Rating Designation | A600 |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24V DC |
| Contact Form | 1NO |
| Number of Operators | 1 |
| Lamp Voltage | 24 |
| Standards | CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660 |
| Lamp Module Voltage | 24V AC/DC |
| Type of Operator | Extended Button |
| Bezel | Silver Coated Polycarbonate |
| Lamp Type | LED |
| Product Type | Push Button Operators |
| Type | Pushbutton |
| Bezel Material | Silver Coated Polycarbonate |
| Product Height | 1.17 in |
| Voltage rating | 24 Vac/dc |
| Actuator function | Momentary |
| Actuator | Extended button |
| Contact configuration | 1 NO |
| Compliances | DIN VDE 0600 |
| Product Length/Depth | 60.9 in |
| Button color | Green |
| Certifications | IEC 60947 |
| Illumination | Illuminated |
| Series | C22 |
| Product Width | 54.6 in |
| Indicator type | LED |
| Product Name | Eaton C22 compact pushbutton |
| Operator Material | Plastic |
| Push Button Style | Extended |
| NEMA Enclosure Rating | 4X, 12, 3, 13, 1 |
| Panel Cutout Diameter | 22 mm |
| Head Color | Green |
| Package Quantity | 1 |
