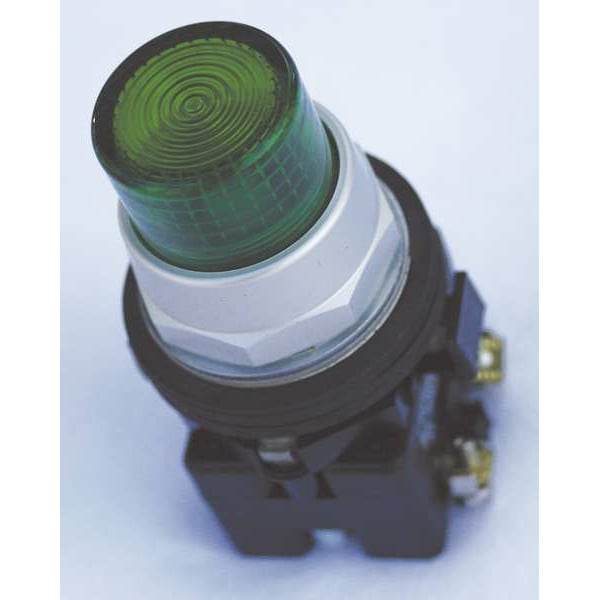

Botón de empuje iluminado, 30 mm, 1 contacto normalmente abierto/1 contacto normalmente cerrado, verde.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| Lamp Voltage | 6V AC |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Lamp Type | LED |
| Type of Operator | Round Button |
| Contact Form | 1NO/1NC |
| Color | Green |
| Bezel | Anodized Aluminum, Mounting Rings |
| Number of Operators | 1 |
| Item | Illuminated Push Button |
| Contact Rating | 10A @ 600V AC/DC |
| Bezel Material | Chrome |
| Contact Type | 1NO/1NC |
| IP Rating | IP65 |
| Terminal Connection | Screw Clamp |
| NEMA Contact Rating Designation | A600, P600 |
| Lamp Module Voltage | 120 V AC |
| Replacement Lamp | Mfr. No. HT8L1T1 |
| Lamp Module Type | Transformer |
| Basic Material | Metal |
| Voltage | 120V |
| Standards | CSA, UL Listed |
| Features | Allen-Bradley Pushbutton Panel Compatible |
| Series | HT800 |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 250 V |
| Type | 30.5 mm, Watertight/Oiltight |
| Product Type | Push Button Operators |
| Actuator function | Momentary |
| Enclosure | NEMA 13 |
| Illumination | Illuminated |
| Light unit voltage | 120 Vac/dc |
| Product Length/Depth | 6.65 in |
| Contact configuration | 1 NO-1 NC |
| Operating mode | Momentary |
| Product Width | 2 in |
| Operator material | Metal |
| Application | Pushbutton |
| Lens Color | Green |
| Actuator | Extended |
| Light unit type | LED, transformer |
| Product Height | 1.4 in |
| Special features | HT800 series |
| Actuator Color | Green |
| Certifications | UL Listed |
| Product Name | Eaton HT800 pushbutton |
| Operator Voltage Rating - Maximum | 28 V |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 6.65 in |
| Push Button Style | Extended |
| Lamp Voltage - Maximum | 120 V AC/DC |
| Operating Temperature - Maximum | 140 deg F |
| Operating Temperature - Minimum | 10 deg F |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Panel Cutout Diameter | 30 mm |
| Head Color | Green |
| Number of Indicator Lights | 0 |
| Overall Width | 2 in |
| Mushroom Head Diameter | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 3R |
| Operator Illumination | Illuminated |
| Overall Height | 1.4 in |
| Package Quantity | 1 |
