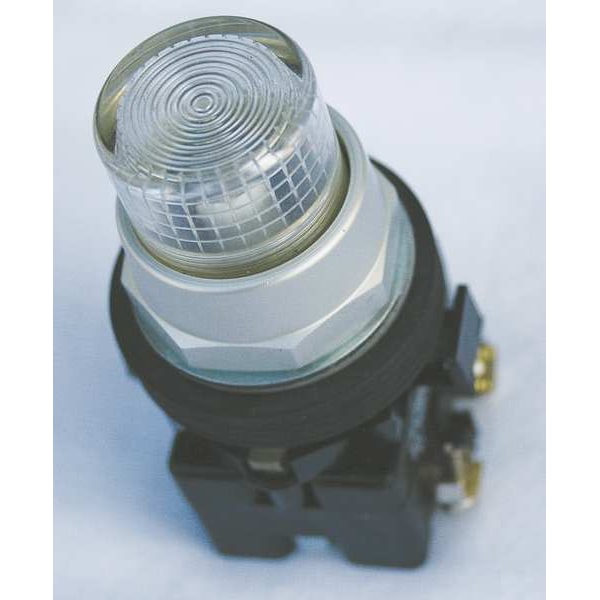

Operador de botón pulsador iluminado, 30 mm, transparente.
| Item | Extended Push Button |
|---|---|
| Basic Material | Metal |
| Features | Allen Bradley Compatible |
| Legend | Not Applicable |
| Type of Operator | Extended Button |
| Lamp Voltage | 6V AC |
| Color | Clear |
| Lamp Type | LED |
| Number of Operators | 1 |
| NEMA Rating | 12, 3R, 4X |
| Series | HT800 |
| Size | 30 mm |
| Bezel | Metal |
| Standards | CSA, UL Listed |
| Head Material | Plastic |
| Action | Momentary |
| Bezel Material | Chrome |
| IP Rating | IP65 |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 120 V AC |
| Terminal Connection | Screw Clamp |
| Type | 30.5 mm, Watertight/Oiltight |
| Legend Color | Not Applicable |
| Application | Pushbutton |
| Operating mode | Momentary |
| Operator material | Polymer |
| Light unit voltage | 120 Vac/dc |
| Actuator function | Momentary |
| Lens Color | Clear |
| Product Height | 1.4 in |
| Special features | HT800 series |
| Actuator | Extended |
| Certifications | CSA Certified |
| Illumination | Illuminated |
| Enclosure | NEMA 13 |
| Light unit type | LED, transformer |
| Product Length/Depth | 6.65 in |
| Actuator Color | Clear |
| Product Width | 2 in |
| Product Name | Eaton HT800 pushbutton |
| Operating Temperature - Maximum | 140 deg F |
| Head Color | Clear |
| Panel Cutout Diameter | 30 mm |
| Overall Height | 1.4 in |
| Lamp Voltage - Maximum | 120 V AC/DC |
| Operating Temperature - Minimum | 10 deg F |
| Operator Illumination | Illuminated |
| Legend Background Color | Not Applicable |
| Push Button Style | Extended |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 3R |
| Maintained Action Release | Not Applicable |
| Resistance Properties | Corrosion Resistant, Oil and Grease Resistant, Watertight |
| Mushroom Head Diameter | Not Applicable |
| Number of Indicator Lights | 1 |
| Hazardous Location Specification | Not Rated |
| Overall Width | 2 in |
| Product Type | Push Button Operators |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 6.65 in |
| Package Quantity | 1 |
