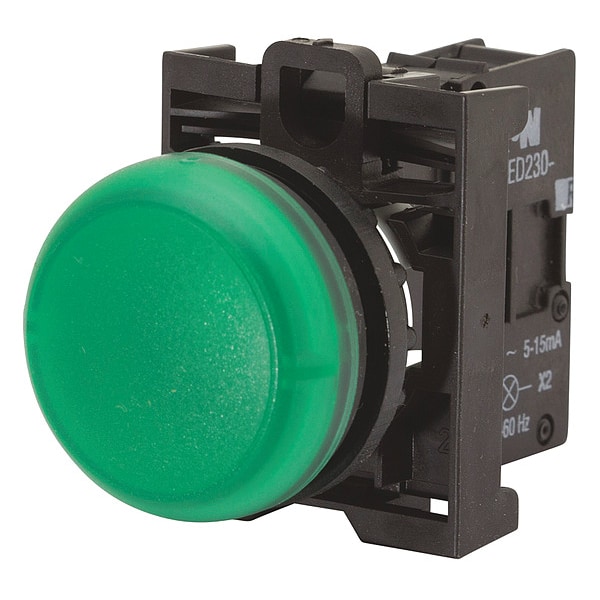

Indicating Light, Green, 22mm, LED
| Item | Indicating Light |
|---|---|
| Voltage | 85 to 264 VAC/VDC |
| Lens Type | Domed |
| Color | Green |
| IP Rating | IP67, IP69K |
| NEMA Rating | 4X, 13 |
| Shape | Round |
| Lamp Type | LED |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Size | 22.5 mm |
| Lamp Voltage | 85 to 264 VAC/VDC |
| Overall Height | 1 in |
| Includes Lamp Module | Lamp Module Included |
| Lamp Module Type | Full Voltage |
| Lamp Color | Green |
| Overall Width | 1 in |
| Lamp Voltage - Maximum | 264 V AC/DC |
| Voltage Rating - Maximum | 264 V AC/DC |
| Terminal Connection | Spring Cage |
| Includes Push-To-Test | No Push-To-Test Included |
| Panel Cutout Diameter | 22 mm |
| Resistance Properties | Corrosion Resistant |
| Overall Depth | 2.26 in |
| NEMA Enclosure Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Series | M22 |
| Lens Material | Plastic |
| Lens Color | Green |
| Manufacturer Warranty Length | 1 yr |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
