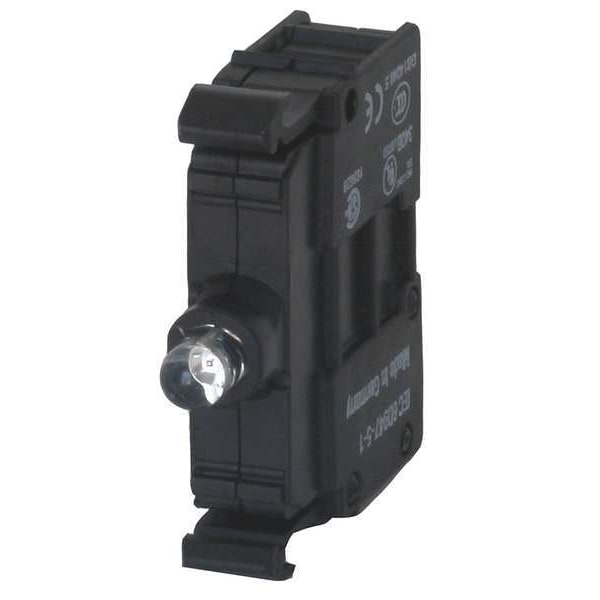

Módulo de lámpara, 22mm, redondo, 22mm, LED, Calificación IP: 67, 69K
| Item | Lamp Module |
|---|---|
| Size | 22 mm |
| Color | Red |
| Lamp Module Voltage | 12 to 24V AC/DC |
| Terminal Connection | Screw |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Standards | CCC, CE, CSA, IEC 60947, Lloyd's Register |
| Lamp Module Type | Full Voltage |
| Lamp Voltage | 24V AC/DC |
| IP Rating | IP69K, IP67, IP66, IP65 |
| Lamp Type | LED |
| Type | Light Unit |
| Body Material | Chrome Die Cast Aluminum |
| Certifications | CCC Marked |
| Product Width | 2 in |
| Environmental rating | IP66, NEMA 4X, 13, Rk resistance 4.7 |
| Voltage rating | 12-30 Vac/dc |
| Light color | Red |
| Series | M22 |
| Illumination | Illuminated |
| Actuator | Screw |
| Product Length/Depth | 2 in |
| Product Height | 1 in |
| Compliances | CE Marked |
| Product Name | Eaton M22 modular pushbutton |
| Compatible with Brand | Eaton |
| Overall Width | 2 in |
| Includes Bulb | Bulb Included |
| Overall Depth | 2 in |
| Manufacturer Warranty Length | 1 yr |
| Terminal Connection Type | Screw Terminals |
| Compatible with Series | M22 |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13, 1 |
| Overall Height | 1 in |
| Compatible Panel Cutout Diameter | 22 mm |
| Compatible Operator | Push Button |
| Voltage Rating - Maximum | 30 V AC/DC |
| Package Quantity | 1 |
