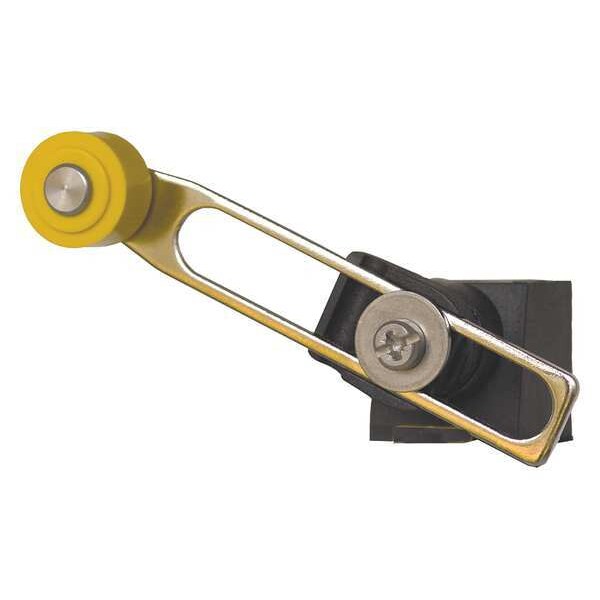

Cabezal de interruptor de límite, palanca giratoria, lateral, 1.75 pulgadas.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Roller Lever Plunger |
| Actuator Location | Side |
| Actuator Length | 1-3/4 in |
| Contact Form | Not Applicable |
| For Use With | LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02 |
| NEMA Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Movement | Vertical |
| Voltage Rating | 415V AC |
| Operating Temp. | -13 to 158 deg F |
| Amps | 10 |
| Description/Special Features | Momentary |
| Standards | RoHS, UL Listed |
| IP Rating | IP67, IP66 |
| Travel | Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees |
| Operating Force | 8 N |
| Series | LS |
| Operating temperature - max | 158°F |
| Enclosure material | Plastic |
| Product Width | 1.22 in |
| Type | LS-Titan |
| Operating speed | 149.96 cm/sec |
| Operating temperature - min | -13°F |
| Product Height | 2.54 in |
| Special features | Head only |
| Environmental rating | IP66, IP67 |
| Product Length/Depth | 2.14 in |
| Actuator | Adjustable roller lever |
| Certifications | UL Listed |
| Product Name | Eaton LS-Titan miniature DIN limit switch |
| Arm Adjustability | Adjustable |
| Differential Travel | 65 Degrees |
| Arm Material | Metal |
| Includes Actuator | Actuator Included |
| Plunger Adjustability | Adjustable |
| Overall Height | 2.54 in |
| Pretravel | 55 Degrees |
| Operating Torque | 8.88 in-lb |
| Reset Travel | 5 Degrees |
| Total Travel | 65 Degrees |
| Arm Length - Minimum | 1.06 in |
| Action | Momentary |
| Compatible with Brand | Eaton |
| Overtravel | 55 Degrees |
| Operating Temperature - Maximum | 158 deg F |
| Compatible with Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Compatible with Series | LS-Titan |
| Roller Adjustability | Adjustable |
| Roller Position | Side |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Minimum | -13 deg F |
| Roller Width | 0.71 in |
| Roller Material | Nylon |
| Arm Length - Maximum | 1-3/4 in |
| Directional Movement | CCW, CW |
| Overall Width | 1.22 in |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Roller Diameter | 1.18 in |
| Overall Depth | 2.14 in |
| Compatible Manufacturer Part Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Compatible Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Package Quantity | 1 |
