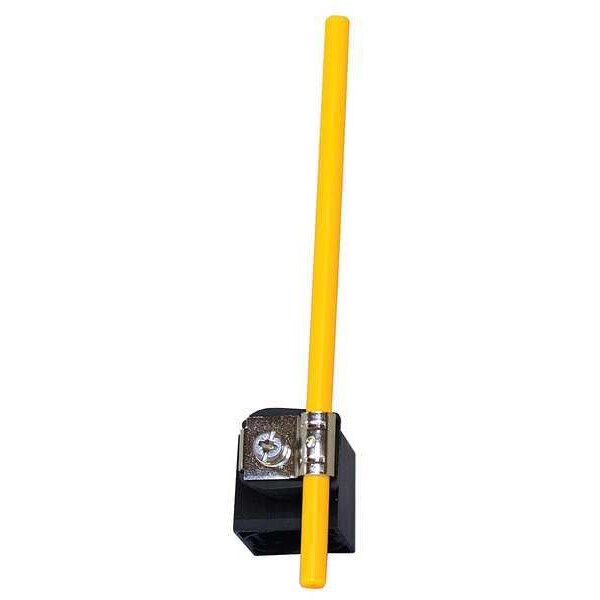

La cabeza del interruptor de límite rotativo lateral Eaton LS-XRR cuenta con una palanca giratoria y una longitud de 5.90 pulgadas. Perfecto para aplicaciones que requieren un interruptor de límite de alta calidad y durabilidad.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rod |
| Actuator Location | Side |
| Actuator Length | 5.9 in |
| Contact Form | Not Applicable |
| For Use With | LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02 |
| NEMA Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Movement | Vertical |
| Operating Force | 8 N |
| Amps | 10 |
| Travel | Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees |
| Voltage Rating | 415V AC |
| Standards | RoHS, UL Listed |
| Operating Temp. | -13 to 158 deg F |
| IP Rating | IP67, IP66 |
| Description/Special Features | Plastic Rod Lever |
| Product Length/Depth | 0.94 in |
| Switch type | Rod lever |
| Operating temperature - min | -13°F |
| Type | LS-Titan |
| Environmental rating | IP66, IP67 |
| Certifications | UL Listed |
| Product Height | 5.91 in |
| Product Width | 1.81 in |
| Operating temperature - max | 158°F |
| Product Name | Eaton LS-Titan miniature DIN limit switch |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Arm Length - Minimum | 3 in |
| Series | LS |
| Pretravel | 43 Degrees |
| Compatible with Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Arm Material | Polymer |
| Operating Temperature - Minimum | -13 deg F |
| Roller Adjustability | Not Applicable |
| Total Travel | 65 Degrees |
| Differential Travel | 65 Degrees |
| Overall Width | 1.81 in |
| Operating Temperature - Maximum | 158 deg F |
| Includes Actuator | Actuator Included |
| Operating Torque | 8.88 in-lb |
| Overtravel | 55 Degrees |
| Action | Momentary |
| Overall Depth | 0.94 in |
| Directional Movement | CCW, CW |
| Roller Position | Side |
| Roller Width | Not Applicable |
| Plunger Adjustability | Not Applicable |
| Arm Length - Maximum | 5.9 in |
| Roller Material | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Compatible with Series | LS-Titan |
| Reset Travel | 22 Degrees |
| Arm Adjustability | Adjustable |
| Roller Diameter | Not Applicable |
| Compatible with Brand | Eaton |
| Overall Height | 5.91 in |
| Compatible Manufacturer Part Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Compatible Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Compatible with Mfr. Model No. | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| For Use with Mfr Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| For Use With Mfr. Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Package Quantity | 1 |
