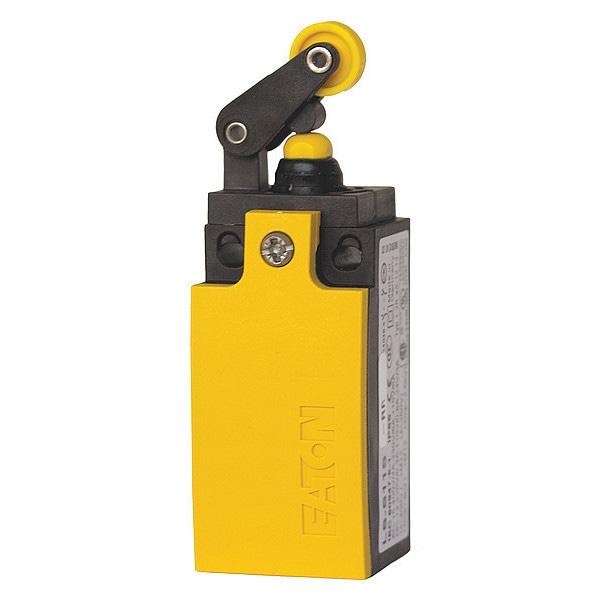

Interruptor de límite, émbolo, palanca de rodillo, 1NC / 1NO, 4A @ 400V CA, Ubicación del actuador: superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller Lever |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 4 A @ 400 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| IP Rating | 67 |
| Amps | 4 |
| Actuator Style (Limit Switch) | Plunger, Roller Lever |
| NEMA Rating | 3, 3S, 4X, 6P |
| Movement | Horizontal |
| Contact Form - Limit Switch | 1NO, 1NC |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Style (Limit Switch) | Miniature |
| Stem Thread - Limit Switch | No Stem |
| Body Depth - Limit Switch | 1.32 in |
| Wiring Entry | M20 Thread |
| Standards | CCC, CE, CSA, UL LISTED |
| Actuator Length - Limit Switch | 1.6 in |
| Actuator Style | Horizontal Roller Lever, Long |
| Width | 1.22 in |
| Operating Force | 0.2 N-m |
| Contact Form | 1NC, 1NO |
| Actuator Location (Limit Switch) | Top |
| AC Contact Rating | 4 A @ 400 V |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Basic Actuator Style (Limit Switch) | Plunger |
| Mounting Hole Spacing - Limit Switch | 0.87 in |
| Limit Switch Style | General Purpose Limit Switch |
| Body Width - Limit Switch | 1.22 in |
| Actuator Length | 1.6 in |
| Travel | Operating Travel 0.36 in, Total Travel 0.38 in |
| Boot Sealed Actuator - Limit Switch | No |
| DC Contact Rating | Not Rated |
| Height | 2.99 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Operating Temp. Range | -13 to 158 deg F |
| Electrical Connection | Screw Terminals |
| Actuator Location | Top |
| Body Height - Limit Switch | 2.53 in |
| Voltage Rating | 400VAC |
| Series | LS |
| Depth | 1.32 in |
| Roller Width | 0.2 in |
| Arm Material | Polymer |
| Certification | UL Listed |
| Arm Width | 0.2 in |
| Differential Travel | 0.38 in |
| Connection Type | Screw terminal |
| Body Material | Polyamide |
| Roller Material | Nylon |
| Arm Depth | 1.44 in |
| Weight | 0.1313 lb |
| Contact Rating | 6A at 240Vac, 3A at 24Vdc |
| Contact Configuration | 1 NO-1 NC, snap action, positive opening |
| Maximum AC Current | 6A |
| Product Name | Eaton LS-Titan miniature DIN limit switch |
| Maximum DC Current | 3A |
| Type | LS-Titan |
| Operating Temperature - Max | 158°F |
| Operating Temperature - Min | -13 °F |
| Switch Type | lever |
| Environmental Rating | IP66, IP67 |
| Enclosure Material | Polyamide PA66-GF25 |
| Product Height | 3.78 in |
| Lamp Type | No Lamp Module Included |
| Mounting Hole Diameter | 0.16 in |
| Body Width | 1.22 in |
| Operating Force - Maximum | 8 N |
| Roller Position | Top |
| Overall Height | 3.78 in |
| Body Configuration | Plug-In |
| Arm Adjustability | Adjustable |
| Pretravel | 0.002 in |
| Overtravel | 0.38 in |
| Reset Travel | 0.17 in |
| Overall Width | 1.32 in |
| Operating Temperature - Maximum | 158 deg F |
| Mounting Hole Vertical Center to Center Distance | 43 mm |
| Plunger Adjustability | Fixed |
| Directional Movement | Linear |
| Includes Actuator | Actuator Included |
| Body Depth | 1.32 in |
| Arm Length - Minimum | 1.18 in |
| Total Travel | 0.38 in |
| Arm Length - Maximum | 1.44 in |
| Mounting Hole Horizontal Center to Center Distance | 22 mm |
| Boot Sealed Actuator | No Boot Included |
| NEMA Enclosure Rating | 6P, 3, 4X, 3S |
| Body Height | 2.53 in |
| Operating Torque - Maximum | 1.77 in-lb |
| Mounting Style | Surface |
| Roller Adjustability | Fixed |
| Operating Temperature - Minimum | -13 deg F |
| Number of Mounting Holes | 2 |
| Operating Force - Minimum | 1 N |
| Action | Momentary |
| Roller Diameter | 0.51 in |
| Wireless Network Interface | Not Applicable |
| Overall Depth | 1.22 in |
| Manufacturer Warranty Length | 1 yr |
| Package Quantity | 1 |
