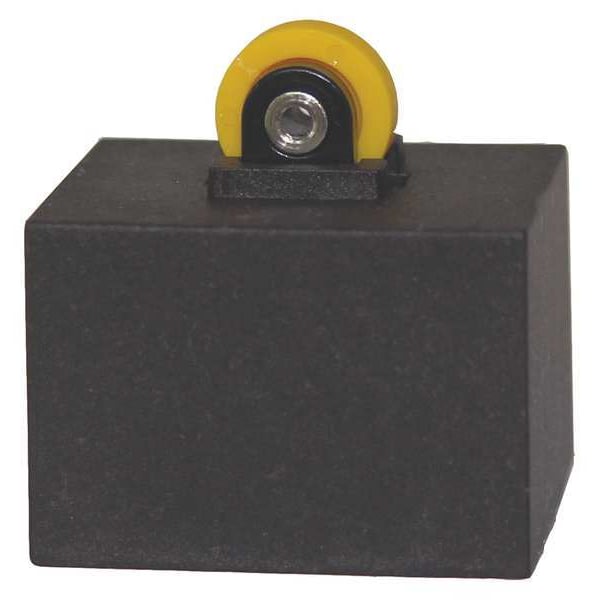

Cabeza de interruptor limitador, émbolo de rollo de empuje, superior, .35 pulgadas.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Push Roller Plunger |
| Contact Form | Not Applicable |
| For Use With | LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02 |
| Actuator Location | Top |
| Actuator Length | 0.35 in |
| NEMA Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Roller Width | 0.1 in |
| Movement | Vertical |
| Roller Material | Nylon |
| Description/Special Features | Momentary |
| Operating Temp. | -13 to 158 deg F |
| Amps | 10 |
| Standards | RoHS, UL Listed |
| Travel | Operating Travel 0.22 in, Total Travel 0.24 in |
| IP Rating | IP67, IP66 |
| Voltage Rating | 415V AC |
| Operating Force | 8 N |
| Differential Travel | 0.24 in |
| Certifications | UL Listed |
| Environmental rating | IP66, IP67 |
| Product Height | 1.01 in |
| Operating temperature - max | 158°F |
| Switch type | push roller |
| Operating temperature - min | -13°F |
| Product Length/Depth | 0.94 in |
| Product Width | 0.98 in |
| Type | LS-Titan |
| Product Name | Eaton LS-Titan miniature DIN limit switch |
| Roller Position | Top |
| Includes Actuator | Actuator Included |
| Compatible with Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Series | LS |
| Reset Travel | 0.12 in |
| Directional Movement | Linear |
| Overall Width | 0.98 in |
| Operating Temperature - Maximum | 158 deg F |
| Compatible with Brand | Eaton |
| Operating Torque | 8.88 in-lb |
| Operating Temperature - Minimum | -13 deg F |
| Overall Height | 1.01 in |
| Pretravel | 0.002 in |
| Compatible with Series | LS-Titan |
| Plunger Adjustability | Fixed |
| Overtravel | 0.22 in |
| Roller Adjustability | Fixed |
| Arm Length - Maximum | 0.35 in |
| Arm Adjustability | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Action | Momentary |
| Roller Diameter | 0.35 in |
| Total Travel | 0.24 in |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Overall Depth | 0.94 in |
| Compatible Manufacturer Part Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Compatible Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Package Quantity | 1 |
