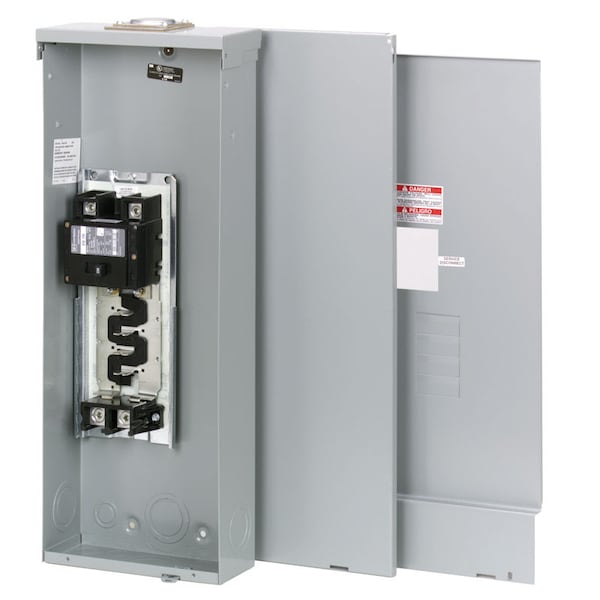

Load Center, BR, 4 Spaces, 200A, 120/240V AC, Main Circuit Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 4 |
| Number of Poles | 8 |
| Amps | 200A |
| AC Voltage Rating | 120/240V |
| Voltage | 120/240V AC |
| Phase | 1 |
| Circuit Breaker Type | BW |
| Short Circuit Current Rating | 10kA |
| Height | 27 in |
| Width | 10-1/2 in |
| Circuit Breaker Mounting Style | Combination |
| Max. AIR Rating | 10 kA |
| Depth | 4-3/4 in |
| Series | BR |
| Included Enclosure Cover | Cover Included |
| Enclosure Material | Metallic |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Min. Wire Size | 2/0 AWG (Cu/Al) |
| Interrupt Rating | 10 kA |
| Standards | UL 50 |
| Features | Feed-Through Lugs, Current Design |
| Includes | Interlock Cover |
| Max. Wire Size | 300 kcmil (Cu/Al) |
| For Use With | Type BR 1-inch Breakers |
| Package Quantity | 1 |
