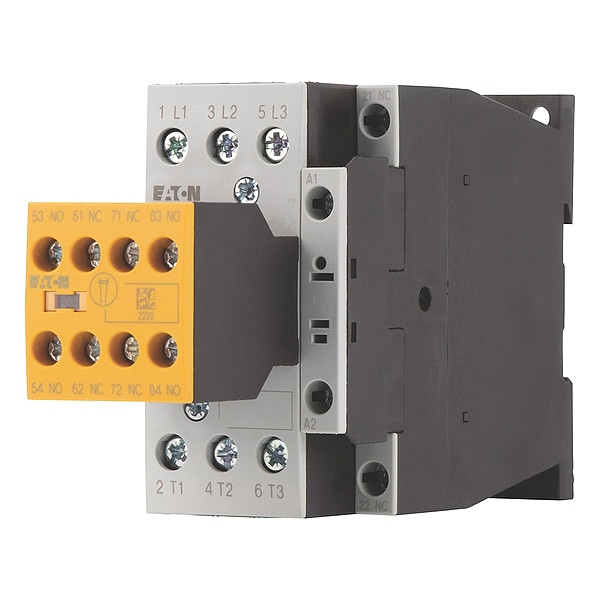

Contactador magnético, no reversible, 110-120VCA.
| Item | Magnetic Contactor |
|---|---|
| Number of Poles | 3 |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 2NO/3NC |
| Standards | CSA, UL Listed |
| Series | XT |
| Full Load Current - Inductive | 18 A |
| Number of Normally Open Main Contacts | 2 |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Overall Depth | 6.1 in |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Single Phase - 120V AC | Not Rated |
| Includes Auxiliary Contacts | Yes |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 240V AC | Not Rated |
| Number of Auxillary Contacts | 5 |
| Frequency | 50/60 Hz |
| Embedded Surge Suppressor | No |
| Contactor Style | IEC |
| Phase | Three |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Reversing Capability | Non-Reversing |
| Auxiliary Contact Module Capacity | Not Applicable |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Full Load Current - Resistive | 18 A |
| Frame Size | C |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 1.9 in |
| Number of Normally Closed Main Contacts | 3 |
| Overall Width | 3.59 in |
| Mounting Style | DIN Rail, Panel Mount, Bolt-on |
| Coil Voltage | 110-120V AC |
| Product Name | Eaton XT IEC contactor |
| Frame | FVNR |
| Frequency Rating | 50-60 Hz |
| Certifications | UL Listed, CSA Certified |
| Rated Operational Current | 200-600 V |
| Amperage Rating | 18 A |
| Hp Rating - Max | 3, 3, 10, 10 hp (3PH @200/208,230/240,460/480,575/600 V) |
| Contact Configuration | 2 NO, 3 NC |
| Package Quantity | 1 |
