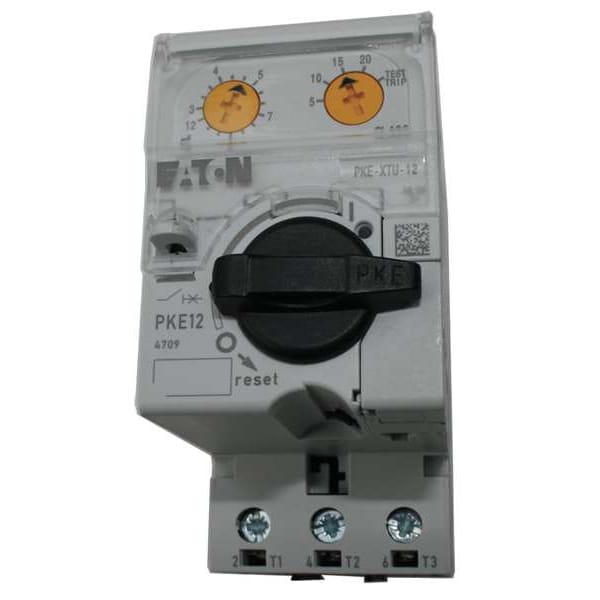

Protector de motor manual, 4A, rotativo, marco D.
| Operator | Selector Switch |
|---|---|
| Type | Pushbutton |
| NEMA Size | Not Applicable |
| Frame Size | B |
| Depth | 4.72 in |
| Number of Required Thermals | Not Applicable |
| Amps AC | 1 to 4 A |
| Height | 3.98 in |
| Item | Manual Motor Protector |
| Width | 1.77 in |
| Starter Type | Manual |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 2 HP |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 240V | 0.75 HP |
| Description/Special Features | Side Mount Aux Contacts, Available Special Order: (1NO/2NC EATON# XTPAXSA12), (2NO/1NC EATON# XTPAXSA21), (1NO/1NC EATON# XTPAXSA11) |
| Standards | CE, CSA, UL 508 Group Motor Type E Compliant, UL Listed |
| HP @ 3 Phase - 575V | 3 HP |
| HP @ 1 Phase - 230V | 0.3333 HP |
| HP @ 3 Phase - 200V | 0.75 HP |
| Trip Class | Class 10 |
| Weight | 1 lb |
| Phase Loss Sensitivity | Yes |
| Product Length/Depth | 2 in |
| Product Height | 4-1/4 in |
| Product Width | 4 in |
| Product Name | Eaton XT IEC motor control |
| Certifications | UL 508;CSA Std. C22.2 |
| Overload Range | 1 to 4 A |
| Overall Height | 4-1/4 in |
| Terminal Connection Type | Screw Terminals |
| Overall Width | 4 in |
| Mounting Style | DIN Rail |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Single Phase - 240V AC | 0.3333 HP |
| Horsepower @ Three Phase - 600V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 0.75 HP |
| Overall Depth | 2 in |
| Horsepower @ Three Phase - 208V AC | 0.75 HP |
| Maximum Overload Relay Current Setting | 4 A |
| Phase | Three |
| Includes Pilot Light | No |
| Starter Style | IEC |
| Current AC | 4 A |
| Overload Protection Type | Electronic |
| Minimum Overload Relay Current Setting | 1 A |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Series | XTPE Series |
| Package Quantity | 1 |
