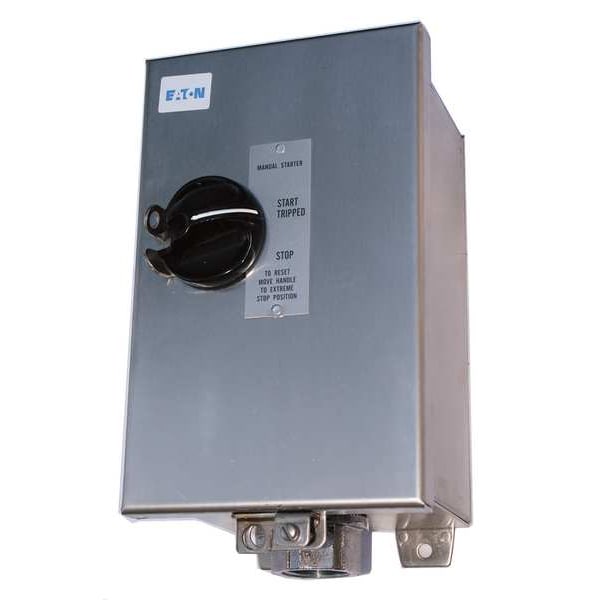

Interruptor de arranque manual para motor, NEMA, 3 polos, M-0.
| Operator | Switch |
|---|---|
| NEMA Size | M-0 |
| Type | Type B100 non-reversing |
| Enclosure NEMA Rating | 7D, 9E, 9F, 9G |
| Number of Required Thermals | 3 |
| Depth | 7.77 in |
| Frame Size | Not Applicable |
| Amps AC | 26 A |
| Height | 12.06 in |
| Item | Manual Motor Starter |
| Width | 8-1/4 in |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 hp |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 240V | 2 hp |
| HP @ 1 Phase - 120V | 2 hp |
| Pilot Light | No |
| HP @ 1 Phase - 230V | 3 hp |
| HP @ 3 Phase - 200V | 2 HP |
| Description/Special Features | Bimetallic Overload Relay |
| HP @ 3 Phase - 460-575V | 5 hp |
| Standards | CSA, UL Listed |
| HP @ 3 Phase - 575V | 5 hp |
| Phase Loss Sensitivity | No |
| Number of Gangs | 1 |
| Product Length/Depth | 3-1/2 in |
| Product Width | 4.88 in |
| Used with | For Polyphase Motors |
| Product Height | 6.97 in |
| Certifications | CSA Certified |
| Size | M - 0 |
| Product Name | Eaton NEMA starter |
| Current AC | 30 A |
| Includes Pilot Light | No |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Maximum Overload Relay Current Setting | Not Applicable |
| Series | B100 |
| Hazardous Location Specification | Class I, Div 1 and 2, Group D, Class II, Div 1 and 2, Group E, F, G |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Overload Protection Type | Thermal |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| NEMA Enclosure Rating | 7, 9 |
| Maximum Voltage Rating | 250/600V AC |
| Overall Width | 4.88 in |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| IP Rating | Not Applicable |
| Phase | Three |
| Overall Height | 6.97 in |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overall Depth | 3-1/2 in |
| Package Quantity | 1 |
