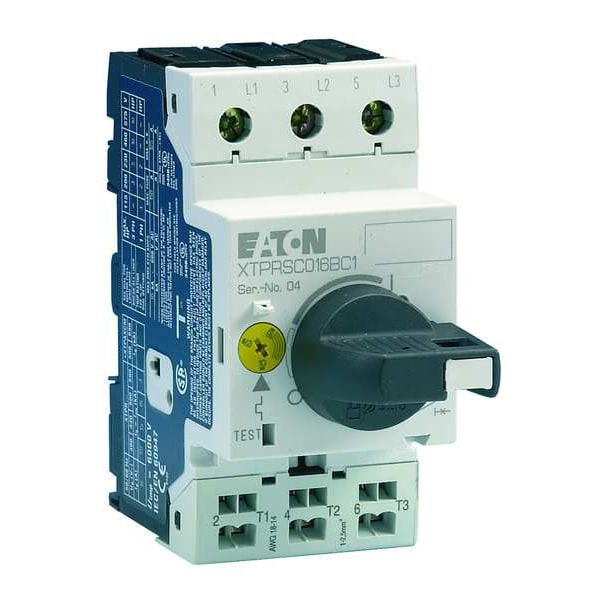

Protector Manual para Medidor, 16A, Giratorio, Marco B.
| Operator | Selector Switch |
|---|---|
| Type | Rotary |
| NEMA Size | Not Applicable |
| Frame Size | B |
| Depth | 3.46 in |
| Number of Required Thermals | Not Applicable |
| Amps AC | 10 to 16 A |
| Height | 3.66 in |
| Item | Manual Motor Protector |
| Width | 1.77 in |
| Starter Type | Manual |
| Number of Poles | 3 |
| HP @ 1 Phase - 115V | 1 HP |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 480V | 10 HP |
| HP @ 3 Phase - 240V | 5 HP |
| HP @ 3 Phase - 200V | 3 HP |
| HP @ 1 Phase - 230V | 2 HP |
| Standards | ATEX Compliant, CE, CSA, UL 508 Group Motor Type E Compliant, UL Listed |
| HP @ 3 Phase - 575V | 10 HP |
| Trip Class | Class 10 |
| Weight | 0.5 lb |
| Phase Loss Sensitivity | Yes |
| Contact Rating | 16 A |
| Product Name | Eaton XT IEC motor control |
| Product Length/Depth | 3.7 in |
| Size | 45 mm |
| Certifications | UL 508;CSA Std. C22.2 |
| Series | XTPR Series |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Phase | Three |
| Mounting Style | DIN Rail |
| Current AC | 16 A |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Starter Style | IEC |
| Terminal Connection Type | Screw Terminals |
| Overall Height | 3.66 in |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Maximum Voltage Rating | 600V AC |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Overall Width | 1.77 in |
| Maximum Overload Relay Current Setting | 16 A |
| Overall Depth | 3.7 in |
| Overload Protection Type | Thermal |
| Minimum Overload Relay Current Setting | 10 A |
| Includes Pilot Light | No |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Package Quantity | 1 |
