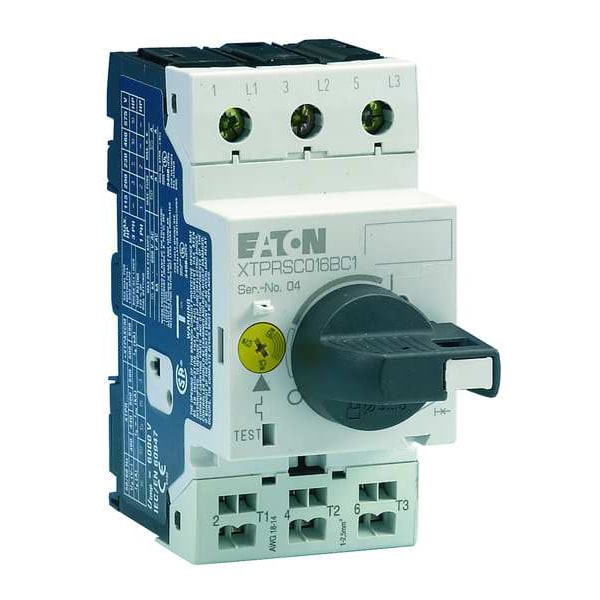

Manual Mtr Protectr, 0.16A, Rotativo, Marco B
| Operator | Selector Switch |
|---|---|
| NEMA Size | Not Applicable |
| Type | Rotary |
| Depth | 3.46 in |
| Frame Size | B |
| Number of Required Thermals | Not Applicable |
| Height | 3.66 in |
| Amps AC | 0.1 to 0.16 A |
| Item | Manual Motor Protector |
| Width | 1.77 in |
| Number of Poles | 3 |
| Max. Voltage | 600V AC |
| Standards | ATEX Compliant, CE, CSA, UL 508 Group Motor Type E Compliant, UL Listed |
| Trip Class | Class 10 |
| Weight | 0.5 lb |
| Phase Loss Sensitivity | Yes |
| Amperage Rating | 0.16 A |
| Product Name | Eaton XT IEC motor control |
| Product Width | 4 in |
| Certifications | UL Listed;CSA Certified |
| Product Height | 4 in |
| Product Length/Depth | 2 in |
| Size | 45 mm |
| Overload Protection Type | Thermal |
| Includes Pilot Light | No |
| Terminal Connection Type | Screw Terminals |
| NEMA Enclosure Rating | No Enclosure |
| Current AC | 0.16 A |
| Overall Depth | 2 in |
| Overall Height | 4 in |
| Mounting Style | DIN Rail |
| Starter Style | IEC |
| Maximum Overload Relay Current Setting | 0.16 A |
| Overall Width | 4 in |
| Phase | Three |
| Maximum Voltage Rating | 600V AC |
| Series | XTPR Series |
| Minimum Overload Relay Current Setting | 0.1 A |
| Package Quantity | 1 |
