Miniature Circuit Breaker, GHB Series, 20A, 3 Pole, 277/480V AC, 14kA at 277/480V AC

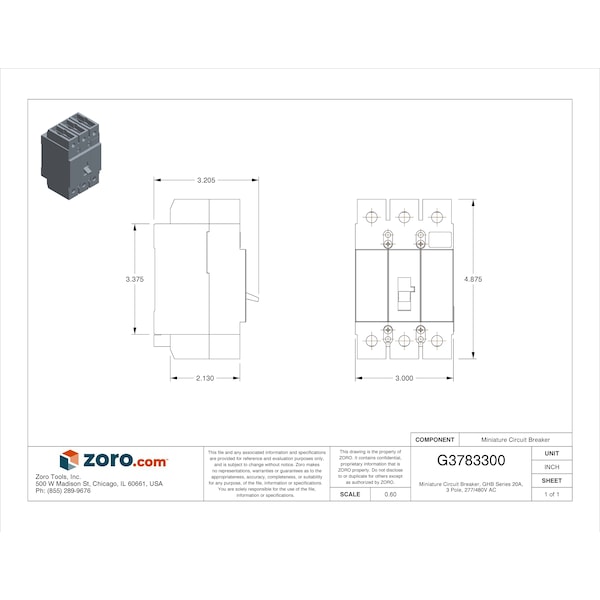

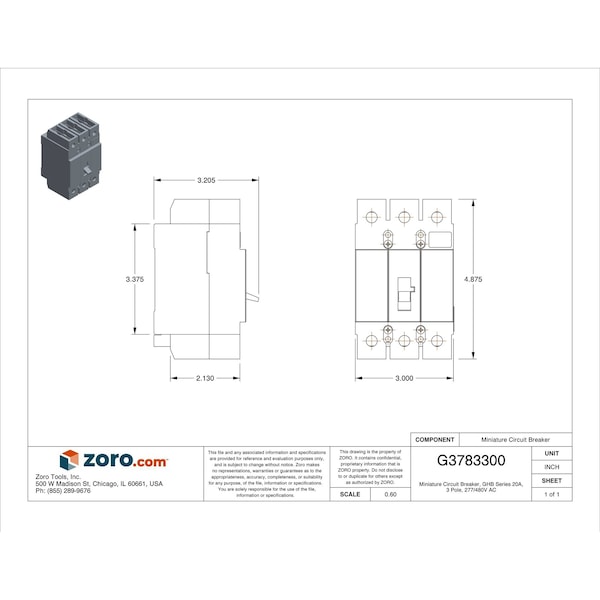

| CAD Available | Yes |
|---|---|
| Item | Miniature Circuit Breaker |
| Series | GHB |
| Amps | 20A |
| Number of Poles | 3 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 14kA at 277/480V AC |
| Trip Type | Fixed Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Screw Clamp |
| Frame Size | 100/GHB |
| Width | 3 in |
| Depth | 2.63 in |
| Height | 4 in |
| DC Voltage Rating | 125/250V DC |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 10 AWG |
| Standards | CSA Certified, UL Listed |
| For Use With | Eaton Powerline Panelboards |
| Frame Type | Complete Breaker |
| Interrupt Rating | 14 kA at 480Y/277V AC |
| Compatible Panelboard/Load Center Series | 1A |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Length (Straight Wireway) | 4 in |
| Certifications | UL Listed |
| Product Name | Eaton Series C complete molded case circuit breaker |
| Frequency Rating | 50/60 Hz |
| Frame | G |
| Compliances | Federal Specifications Classification W-C375B |
| Mounting | Bolt on |
| Length | 4 in |
| Package Quantity | 1 |
