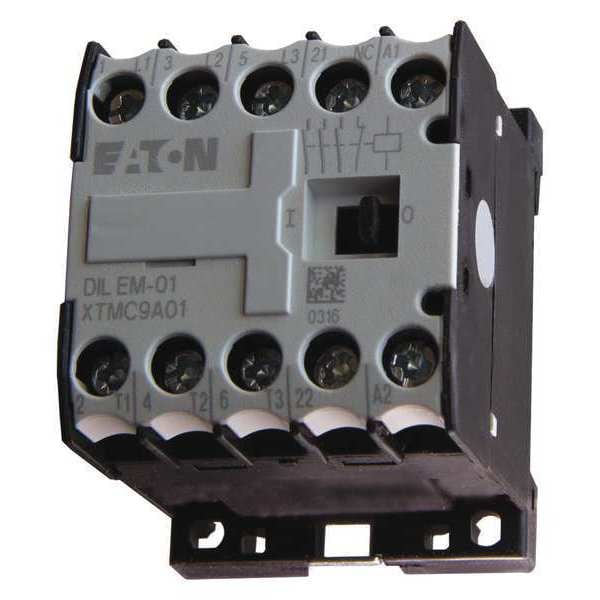

Contacto magnético miniatura IEC, 3 polos, 24 V CC, 9 A, Reversión: No
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | Miniature IEC Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 20 A |
| Type | Full voltage non-reversing mini contactor |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 230V | 1.5 |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| Height | 1.77 in |
| HP @ 3 Phase - 208V | 2 hp |
| Width | 1.77 in |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Depth | 2.05 in |
| HP @ 3 Phase - 480V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NC |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Auxiliary Contact Form | 1NC |
| Frame / Series / Class / Code | Frame A |
| NEMA Size | Not Applicable |
| Series | XT |
| IP Rating | IP20 |
| Electrical Connection | Screw Terminals |
| Product Height | 2.28 in |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Hp Rating - Max | 0.5, 1, 1.5/ 2, 3, 5, 5 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Amperage Rating | 8.8 A |
| Contact Configuration | 1 NC |
| Product Name | Eaton XT IEC mini contactor |
| Coil Voltage | 24V DC |
| Product Width | 1.44 in |
| Product Length/Depth | 1.79 in |
| Frame Size | A |
| Compliances | CE Marked |
| Full Load Current - Inductive | 9 A |
| Mounting Hole Diameter | 0.16 in |
| Mounting Hole Distance - Width | 1.38 in |
| Overall Height | 2.28 in |
| Embedded Surge Suppressor | Yes |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Full Load Current - Resistive | 20 A |
| Minimum Operating Temperature | -13 deg F |
| Terminal Connection Type | Screw Terminals |
| Maximum Voltage Rating | 690V AC/DC |
| Includes Auxiliary Contacts | Yes |
| Mounting Postion | Vertical |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Frequency | 50/60 Hz |
| Overall Depth | 1.79 in |
| Mounting Style | DIN Rail, Panel |
| Maximum Operating Temperature | 122 deg F |
| Horsepower @ Single Phase - 240V AC | 1.5 HP |
| Mounting Hole Distance - Height | 1.98 in |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Number of Auxillary Contacts | 1 |
| Mechanical Operating Durability | 20,000,000 |
| Contactor Style | IEC |
| NEMA Enclosure Rating | No Enclosure |
| NEMA Enclosure Material | Not Applicable |
| Response Time | 14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min) |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Overall Width | 1.44 in |
| Package Quantity | 1 |
