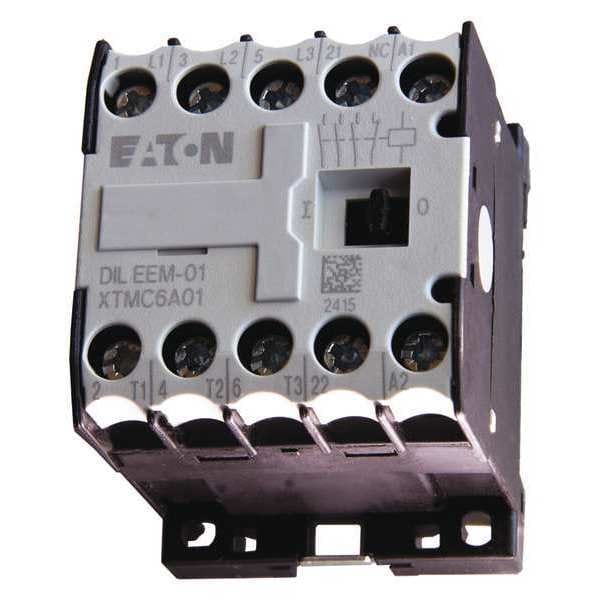

Contacto magnético IEC en miniatura, 3 polos, 240 V AC, 6 A, Reversión: No
| Full Load Amps-Inductive | 6 A |
|---|---|
| Item | Miniature IEC Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 3 |
| Coil Volts | 240 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/4 hp |
| HP @ 1 Phase - 230V | 1 |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 1.77 in |
| HP @ 3 Phase - 208V | 2 hp |
| Width | 1.77 in |
| HP @ 3 Phase - 575V | 3 hp |
| Depth | 2.05 in |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 480V | 3 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NC |
| Standards | CCC, CSA, EN/IEC 60947, UL Listed, VDE 0660 |
| Frame / Series / Class / Code | Frame A |
| Series | XT |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Number of Auxillary Contacts | 1 |
| Coil Voltage | 220/240V AC |
| Mechanical Operating Durability | 10,000,000 |
| Overall Width | 1.77 in |
| Mounting Hole Diameter | 0.16 in |
| Embedded Surge Suppressor | Yes |
| Response Time | 15 to 25 msec, 8 to 18 msec |
| Mounting Postion | Vertical |
| Contactor Style | IEC |
| Phase | Three |
| Maximum Voltage Rating | 690V AC/DC |
| Horsepower @ Three Phase - 600V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Full Load Current - Inductive | 6 A |
| Mounting Hole Distance - Width | 1.38 in |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Horsepower @ Three Phase - 480V AC | 3 HP |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Frame Size | A |
| Reversing Capability | Non-Reversing |
| Overall Depth | 3.27 in |
| Overall Height | 2.28 in |
| NEMA Enclosure Rating | No Enclosure |
| NEMA Enclosure Material | Not Applicable |
| Mounting Style | DIN Rail, Panel |
| Minimum Operating Temperature | -13 deg F |
| Maximum Operating Temperature | 122 deg F |
| Mounting Hole Distance - Height | 1.98 in |
| Full Load Current - Resistive | 20 A |
| Horsepower @ Single Phase - 120V AC | 0.25 HP |
| Terminal Connection Type | Screw Terminals |
| Package Quantity | 1 |
