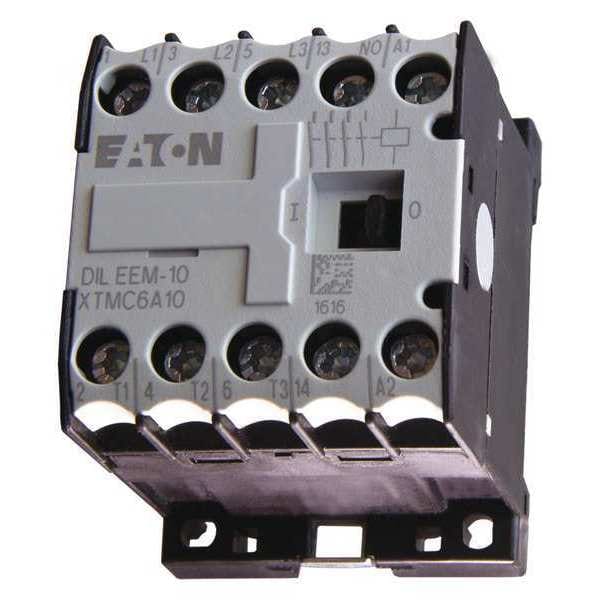

Contacto magnético IEC en miniatura, 3 polos, 240 V CA, 6 A, Reversión: No.
| Full Load Amps-Inductive | 6 A |
|---|---|
| Item | Miniature IEC Magnetic Contactor |
| Full Load Amps-Resistive | 20 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing mini contactor |
| Number of Poles | 3 |
| Coil Volts | 240 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/4 hp |
| HP @ 1 Phase - 230V | 0.75 |
| HP @ 1 Phase - 240V | 3/4 hp |
| Height | 1.77 in |
| Width | 1.77 in |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| Depth | 2.05 in |
| HP @ 3 Phase - 575V | 3 hp |
| HP @ 3 Phase - 240V | 2 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 3 hp |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame A |
| Auxiliary Contact Form | 1NO |
| Series | XT |
| NEMA Size | Not Applicable |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Contact Configuration | 1 NO |
| Product Height | 2 in |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Product Name | Eaton XT IEC mini contactor |
| Product Width | 2-1/2 in |
| Coil Voltage | 220/240V AC |
| Product Length/Depth | 2-1/2 in |
| Compliances | CE Marked |
| Hp Rating - Max | 0.25, 0.75, 1/ 1.5, 2, 3, 3 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Frequency Rating | 50-60 Hz |
| Amperage Rating | 6.6 A |
| Maximum Operating Temperature | 122 deg F |
| Mounting Hole Diameter | 0.16 in |
| Frame Size | A |
| Full Load Current - Inductive | 6 A |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Embedded Surge Suppressor | Yes |
| NEMA Enclosure Material | Not Applicable |
| Mechanical Operating Durability | 10,000,000 |
| Full Load Current - Resistive | 20 A |
| Reversing Capability | Non-Reversing |
| Overall Width | 2-1/2 in |
| Mounting Style | DIN Rail, Panel |
| Terminal Connection Type | Screw Terminals |
| Includes Auxiliary Contacts | Yes |
| Response Time | 14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min) |
| Mounting Hole Distance - Width | 1.38 in |
| Horsepower @ Three Phase - 600V AC | 3 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 0.25 HP |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Maximum Voltage Rating | 690V AC/DC |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Mounting Postion | Vertical |
| Contactor Style | IEC |
| Mounting Hole Distance - Height | 1.98 in |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Three Phase - 480V AC | 3 HP |
| NEMA Enclosure Rating | No Enclosure |
| Overall Depth | 2-1/2 in |
| Overall Height | 2 in |
| Package Quantity | 1 |
