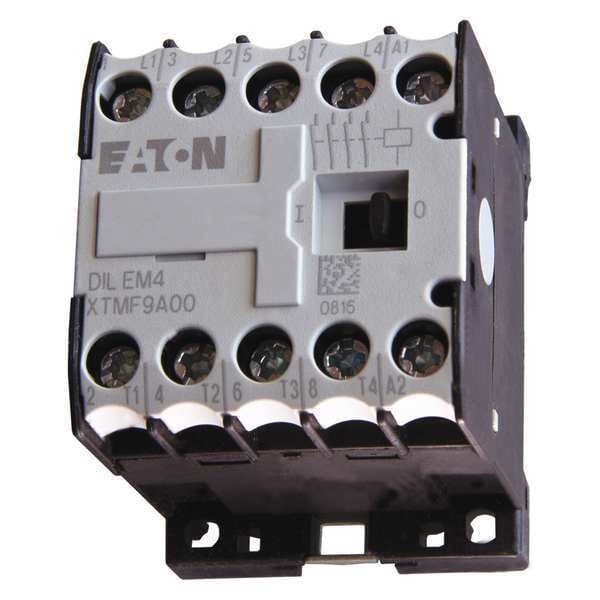

Contacto magnético IEC miniatura, 4 polos, 120 V CA, 9 A, Reversión: No.
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | Miniature IEC Magnetic Contactor |
| Full Load Amps-Resistive | 20 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing mini contactor |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1 |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 1.77 in |
| HP @ 3 Phase - 208V | 2 hp |
| Width | 1.77 in |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Depth | 2.05 in |
| HP @ 3 Phase - 480V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame A |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| NEMA Size | Not Applicable |
| Series | XT |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Coil Voltage | 110/120V AC |
| Compliances | CE Marked |
| Frame Size | A |
| Amperage Rating | 8.8 A |
| Frequency Rating | 50-60 Hz |
| Product Height | 2 in |
| Product Length/Depth | 2-1/2 in |
| Contact Configuration | 0 NO, 0 NC |
| Product Name | Eaton XT IEC mini contactor |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Product Width | 2-1/2 in |
| Terminal Connection Type | Screw Terminals |
| Full Load Current - Inductive | 9 A |
| Frequency | 50/60 Hz |
| Embedded Surge Suppressor | Yes |
| Maximum Operating Temperature | 122 deg F |
| Minimum Operating Temperature | -13 deg F |
| Reversing Capability | Non-Reversing |
| Phase | Three |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 2 in |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Mounting Postion | Vertical |
| Maximum Voltage Rating | 690V AC/DC |
| Mounting Style | DIN Rail, Panel |
| Number of Auxillary Contacts | 0 |
| Includes Auxiliary Contacts | No |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Overall Depth | 2-1/2 in |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Full Load Current - Resistive | 20 A |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Horsepower @ Three Phase - 600V AC | 4 HP |
| Response Time | 14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min) |
| NEMA Enclosure Material | Not Applicable |
| Overall Width | 2-1/2 in |
| Mechanical Operating Durability | 10,000,000 |
| Package Quantity | 1 |
