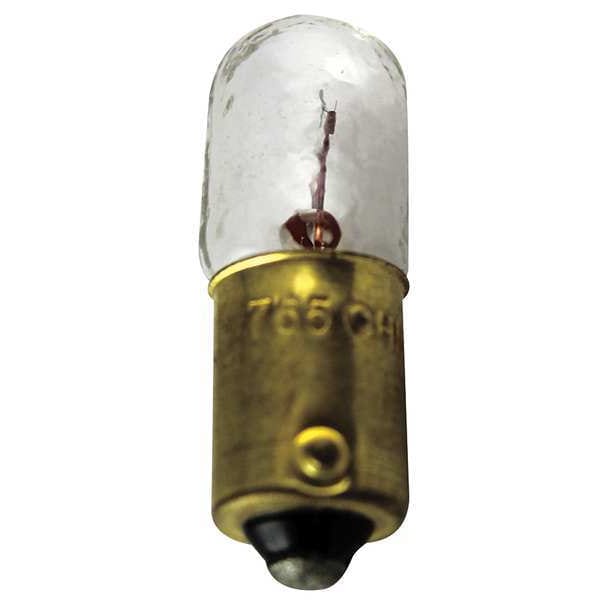

Foco incandescente miniatura, 755, 6.3V
| Item | Incandescent Bulb |
|---|---|
| Size | 30.5 mm |
| For Use With | 10250T Illuminatedluminated Operators |
| Voltage | 6.3 V AC |
| Includes | 6.3 Volts |
| Overall Length | 1-3/16 in |
| Max. Overall Bulb Length | 1-3/16" |
| Max Overall Bulb Length | 1-3/16" |
| Average Bulb Life | 20,000 hr |
| Bulb Shape | T3-1/4 |
| Bulb Amps | 150 mA |
| Lighting Technology | Incandescent |
| Bulb Primary Application | Illuminator |
| Bulb Base Type | Miniature Bayonet (BA9s) |
| Bulb Type | Miniature |
| Lumens | 4 lm |
| Trade Number | 755 |
| Watts | 1 |
| Standards | CE Certified, CSA Certified |
| Light Technology | Incandescent |
| Amps | 0.15 |
| Wattage Equivalency | 1 W INC |
| Overall Bulb Shape | T |
| Rated Life | 20,000 hr |
| Overall Bulb Base Type | Miniature Bayonet |
| Color Tuning | No |
| Bulb Manufacturers Warranty Length | 1 yr |
| Application | Transformer, PresTest and full voltage |
| Light Color | White |
| Type | accessory |
| Special Features | Lamp |
| Mounting method | T 3-1/4 bayonet |
| Series | 10250T |
| Product Width | 0.4 in |
| Product Height | 0.3 in |
| Used with | 10250T illuminated operators |
| Lamp voltage - min | 6.3 VAC |
| Lamp voltage - max | 6.3 VAC |
| Compliances | CE Marked |
| Light unit type | Incandescent |
| Certifications | CSA Certified |
| Product Length/Depth | 1.1 in |
| Dimmable | No |
| Product Name | Eaton pushbutton lamp |
| Options | Lamp type: #757 |
| Package Quantity | 1 |
