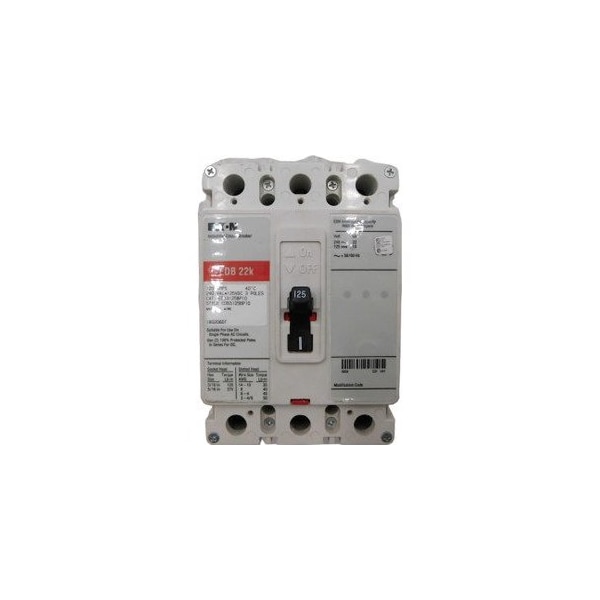

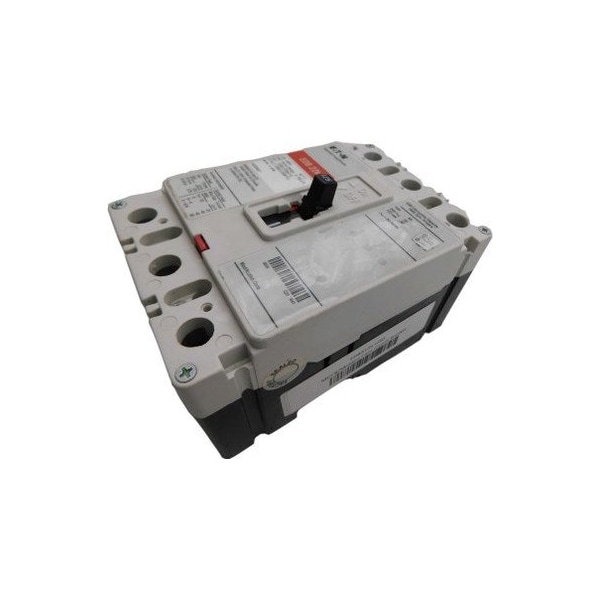

Molded Case Breakers MCCBs EDB 3P 125A 240V 50/60Hz 3Ph F Frame
| Series | C |
|---|---|
| Amps | 125 A |
| Number of Poles | 3 |
| Circuit Breaker Type | Current Limiting;Thermal Magnetic |

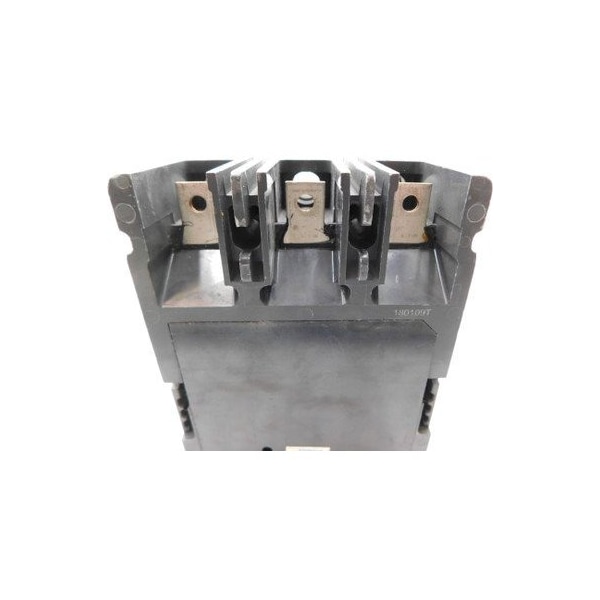

| Terminal Connection | Standard Pressure Line Terminal;Standard Pressure Load Terminal |
| Width | 4.13 in |
| Depth | 3.38 in |
| Height | 6 in |
| DC Voltage Rating | 125 V |
| Standards | UL |
| Frame Type | F |
| Interrupt Rating | 22 kA at 240 VAC;10 Kiloampere at 125 VDC (UL);22 Kiloampere at 220/240 VAC;10 Kiloampere at 125 VDC (IEC) |
| Package Quantity | 1 |
