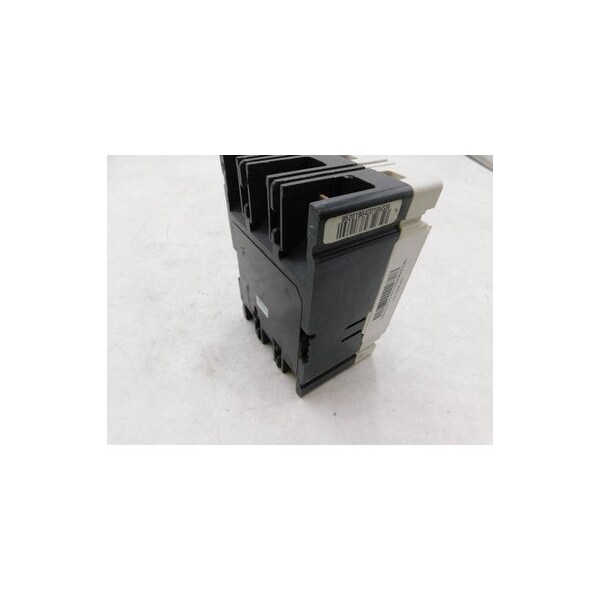

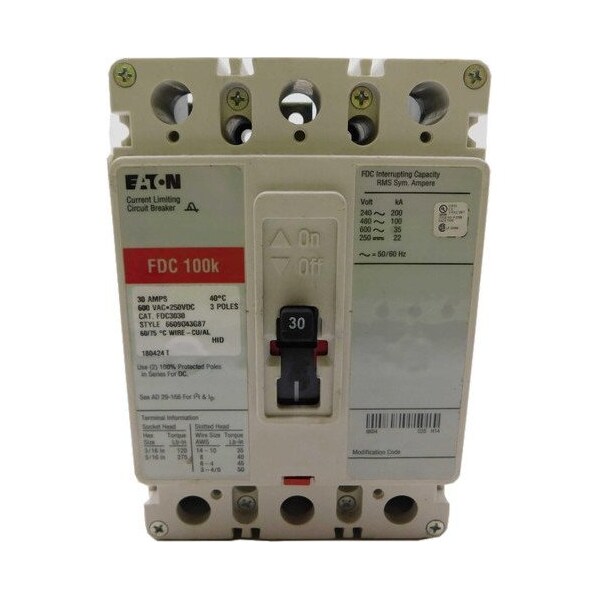

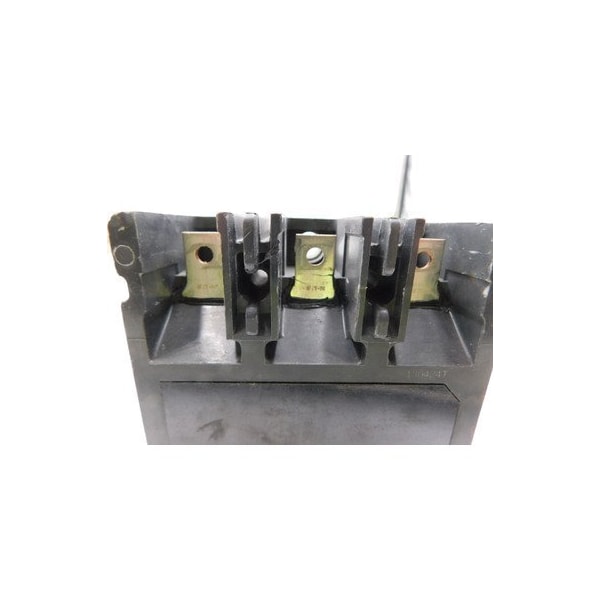

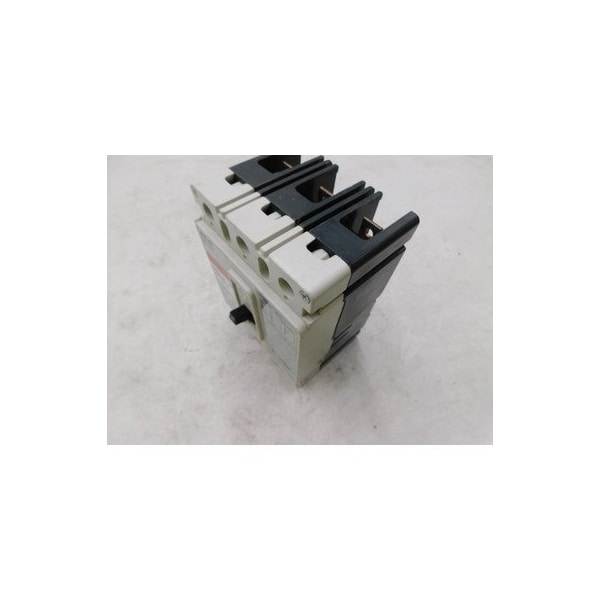

Molded Case Breakers MCCBs FDC 3P 30A 600V 50/60Hz 3Ph F Frame
| Amps | 30 A |
|---|---|
| Number of Poles | 3 |
| Circuit Breaker Type | Fixed Thermal Magnetic;Molded Case |
| Terminal Connection | Load |
| Width | 4.13 in |
| Depth | 3.88 in |
| Height | 6 in |
| DC Voltage Rating | 250 V |
| Standards | UL 489;CSA C22.2 |
| Frame Type | FD |
| Interrupt Rating | 200 kA at 240 VAC;100 Kiloamp at 480 Volt AC;35 Kiloamp at 600 Volt AC;22 Kiloamp at 250 Volt DC (UL);200 Kiloamp at 220/240 Volt AC;100 Kiloamp at 380/415/440 Volt AC;35 Kiloamp at 500 Volt AC;22 Kiloamp at 250 Volt DC (IEC) |
| Package Quantity | 1 |
