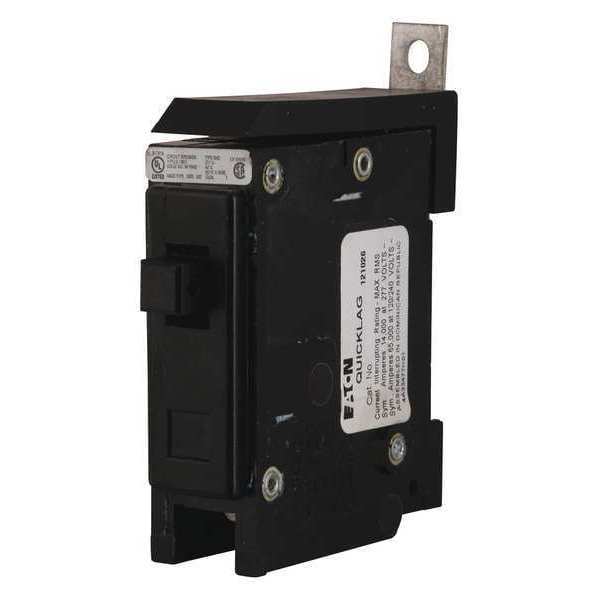

Molded Case Circuit Breaker, GHQ Series, 20A, 1 Pole, 277V AC, 14kA at 277V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | GHQ |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 14kA at 277V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Screw Clamp |
| Phase Connection | A |
| Frame Size | 30A, G |
| Width | 1 in |
| Depth | 2.9 in |
| Height | 2.9 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 14 AWG |
| Low Amp Trip Setting | 15 A |
| Standards | CSA Certified, IEC Rated, UL Listed |
| For Use With | Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Max. Wire Size | 1/0 AWG |
| High Amp Trip Setting | 20 A |
| Interrupt Rating | 14 kA |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Certifications | UL 489 |
| Shunt Trip | 120-240V |
| Product Name | circuit breaker |
| Mounting | Free Standing |
| Package Quantity | 1 |
