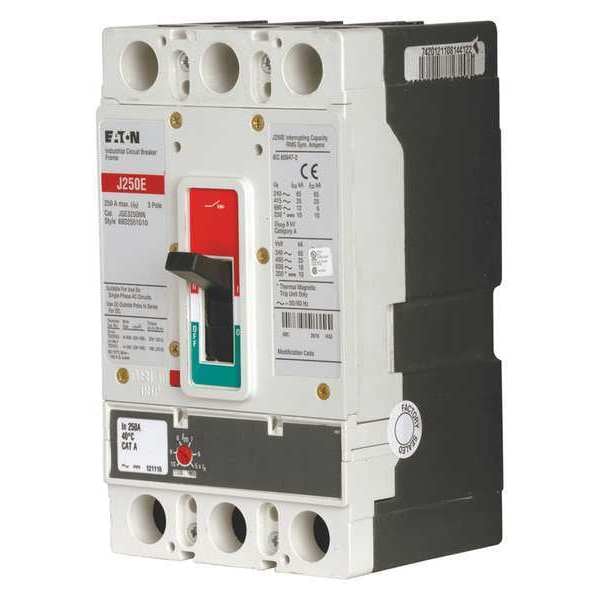

Molded Case Circuit Breaker, JG Series, 175A, 3 Pole, 600V AC, 25kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | JG |
| Amps | 175A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 25kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, JG |
| Width | 4.13 in |
| Depth | 3.57 in |
| Height | 4.13 in |
| DC Voltage Rating | 250V DC |
| For Use With | Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 1/0 AWG |
| High Amp Trip Setting | 250 A |
| Standards | CSA Certified, IEC Rated, UL Listed |
| Low Amp Trip Setting | 20 A |
| Frame Type | Complete Breaker |
| Interrupt Rating | 25 kA at 480V AC |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Frequency Rating | 50 to 60 Hz |
| Compliances | CE Marked |
| Certifications | CSA Certified;UL Listed;IEC Rated |
| Rating | 80% rated |
| Product Name | Eaton Series G molded case circuit breaker |
| Mounting | Free Standing |
| Package Quantity | 1 |
