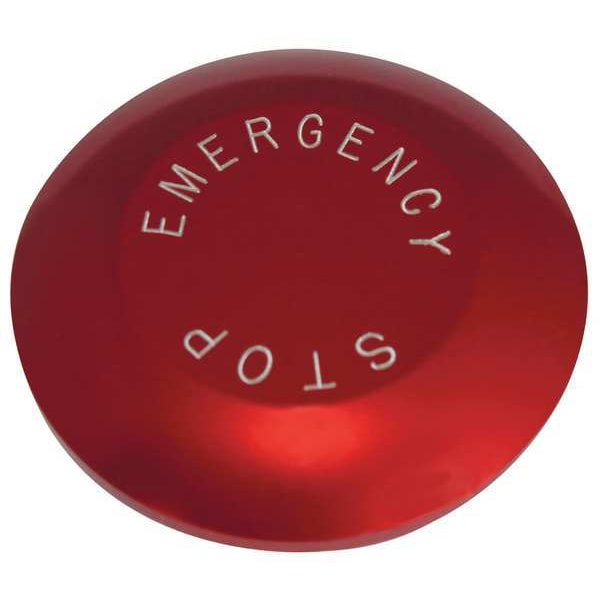

Cabeza de Hongo, 30mm, Rojo, Metal
| Item | Mushroom Head |
|---|---|
| Size | 30 mm |
| For Use With | Eaton 2/3 Position Non-Illuminated Push-Pull Devices |
| Legend | Emergency Stop |
| Color | Red |
| Legend/Background Color | White, Red |
| Standards | CE, CSA, UL Listed |
| NEMA Rating | 1, 12, 3, 4 |
| IP Rating | IP65 |
| Basic Material | Metal |
| Operator Size | 1.58 in dia |
| Illuminated / Non-Illuminated | Non-Illuminated |
| Head Material | Aluminum |
| Type | Oiltight, 30.5 mm Heavy-Duty Watertight |
| Connection Type | Screw-On |
| Actuator | Jumbo mushroom head |
| Series | 10250T |
| Actuator color | Red |
| Certifications | UL Listed |
| Bus material | aluminum |
| Product Length/Depth | 2.4 in |
| Used with | Push-pull, non-illuminated |
| Product Width | 2.1 in |
| Compliances | CE Marked |
| Product Height | 3.3 in |
| Product Name | Eaton 10250 button |
| Panel Cutout Diameter | 30 mm |
| Compatible with Series | 10250T |
| Compatible Operator Illumination | Non-Illuminated |
| Mushroom Head Diameter | 65 mm |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Overall Width | 2.1 in |
| Overall Height | 3.3 in |
| Manufacturer Warranty Length | 1 yr |
| Head Style | Mushroom Head |
| Overall Depth | 2.4 in |
| Legend Color | Red |
| Head Color | Red |
| Compatible with Brand | Eaton |
| Package Quantity | 1 |
