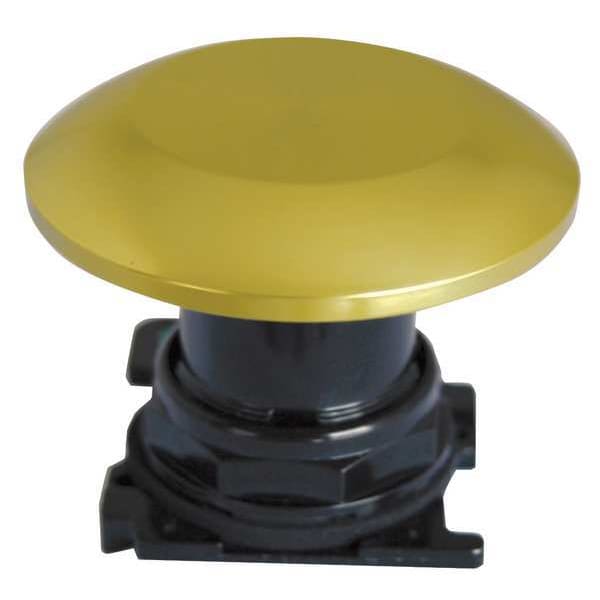

Cabeza de hongo, 30mm, Amarillo, Metal
| Size | 30 mm |
|---|---|
| Item | Mushroom Head Push Button |
| For Use With | Eaton Contact Blocks |
| Features | Drainage Holes, Grounding Nibs |
| Color | Yellow |
| Head Material | Metal |
| IP Rating | IP65 |
| NEMA Rating | 1, 12, 3, 4 |
| Operator Size | 1.58 in dia |
| Standards | CE, CSA, FDA 3-A, UL 505, UL Listed |
| Basic Material | Metal |
| Illuminated / Non-Illuminated | Non-Illuminated |
| Product Type | Push Button Operators |
| Bezel Material | Metal |
| Action | Momentary |
| Type | Pushbutton |
| Bezel | Black |
| Terminal Connection | Screw Clamp |
| Number of Operators | 1 |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| Actuator material | Anodized aluminum |
| Illumination | Non-illuminated |
| Product Width | 2.4 in |
| Rating | NEMA 12 |
| Certifications | UL Listed |
| Product Length/Depth | 3.3 in |
| Actuator color | Yellow |
| Series | E34 |
| Actuator | Jumbo mushroom |
| Product Height | 3.3 in |
| Compliances | CE Marked |
| Operating Mode | Momentary |
| Degree of protection | NEMA 13 |
| Product Name | Eaton E34 pushbutton |
| Operator Material | Aluminum |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Minimum | 32 deg F |
| Overall Height | 3.3 in |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Push Button Style | Mushroom Head |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Overall Width | 2.4 in |
| Operating Temperature - Maximum | 140 deg F |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Lamp Voltage - Maximum | Not Applicable |
| Head Color | Yellow |
| Number of Indicator Lights | 0 |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 3.3 in |
| Panel Cutout Diameter | 30 mm |
| Mushroom Head Diameter | 65 mm |
| Package Quantity | 1 |
