Interruptor selectivo de posición de 2 posiciones para mamá no enferma, estilo de palanca.
| Item | Potentiometer |
|---|---|
| Size | 22.5 mm |
| IP Rating | IP69K, IP67 |
| Series | M22 |
| Product Length/Depth | 1.17 in |
| Button color | Black |
| Bezel | Silver |
| Actuator | Knob |
| Product Height | 1 in |
| Type | switch |
| Illumination | Non-illuminated |
| Operating Cycles | 100,000 operations |
| Environmental rating | IP66, NEMA 4X, NEMA 13 |
| Number Of Positions | 3 |
| Certifications | CSA Certified |
| Actuator function | Momentary |
| Product Width | 1.17 in |
| Compliances | Bureau Veritas |

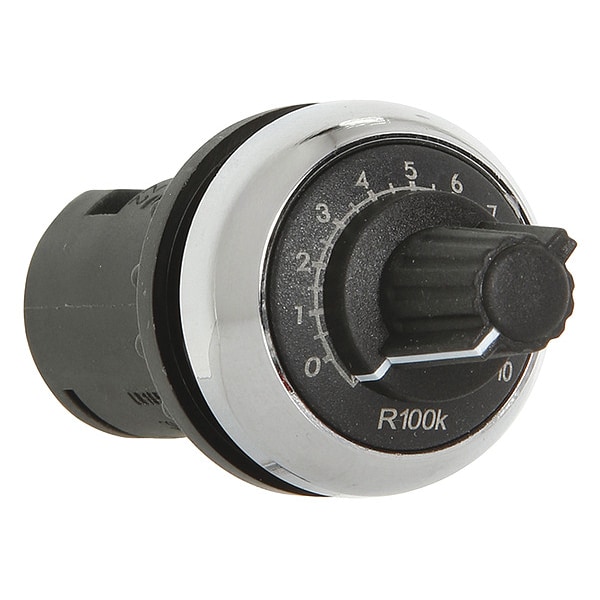

| Product Name | Eaton M22 potentiometer |
| Enclosure | NEMA 13;NEMA 4X |
| NEMA Enclosure Rating | 13, 4X |
| Includes Dial Plate | Dial Plate Included |
| Overall Height | 1-1/2 in |
| Current Rating | 8 mA |
| Resistance Rating | 4,700 ohm |
| Voltage Rating - Maximum | 240 V AC |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Maximum | 158 Degrees F |
| Operating Temperature - Minimum | -13 Degrees F |
| Panel Cutout Diameter | 22 mm |
| Knob Style | Oversized |
| Overall Depth | 7 in |
| Power Rating | 0.5 W |
| Overall Width | 5 in |
| Package Quantity | 1 |
