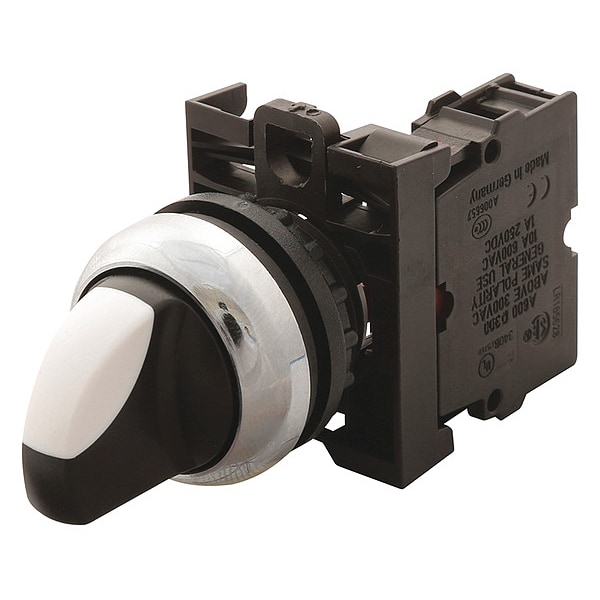

Palanca de interruptor de selección de montaje dulce de 2 posiciones sin indicación de falla.
| Item | Selector Switch |
|---|---|
| Size | 22.5 mm |
| Action | Maintained |
| Contact Form | 2 NO |
| Cam | No Cam Required |
| Operator Head Material | Plastic |
| Bezel Material | Silver |
| IP Rating | IP69K, IP67 |
| Series | M22 |
| Lamp Type | Not Applicable |
| DC Contact Rating | 3 A @ 24 V |
| Lamp Module Type | Not Applicable |
| Standards | BV, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| AC Contact Rating | 6 A @ 230 V |
| Product Height | 1-1/4 in |
| Compliances | CE Marked |
| Product Length/Depth | 1.46 in |
| Actuator function | Maintained |
| Number Of Positions | 3 |
| Contact configuration | 1 NO |
| Illumination | Non-illuminated |
| Button color | Black |
| Bezel | Silver |
| Certifications | CSA Certified |
| Actuator | Knob |
| Type | switch |
| Environmental rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Product Width | 1.18 in |
| Product Name | Eaton M22 modular pushbutton |
| Switch Function @ 3rd Position | On |
| Includes Operator Key | Not Applicable |
| Contact Block Material | Plastic |
| Switch Function @ 1st Position | On |
| Metal Operator Head Finish | Not Applicable |
| Overall Width | 2 in |
| Manufacturer Warranty Length | 1 yr |
| Panel Cutout Diameter | 22 mm |
| Operator Head Color | Black |
| Overall Depth | 2.76 in |
| Key Removal Position | Not Applicable |
| Operator Head Type | Short-Handled Knob |
| Hazardous Location Specification | Not Rated |
| Overall Height | 1 in |
| Operator Illumination | Non-Illuminated |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Function @ 2nd Position | Off |
| Lamp Voltage - Maximum | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Package Quantity | 1 |
