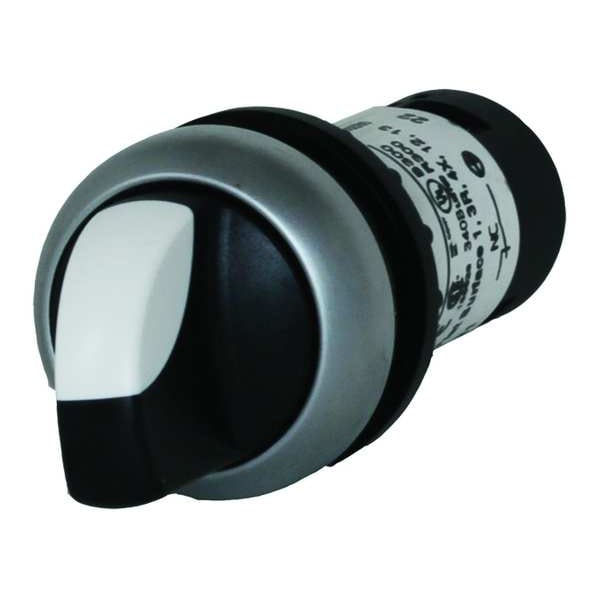

Interruptor selector no iluminado, 2 contactos normalmente abiertos, sin llave, 3 polos.
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Plastic |
| Type of Operator | Knob with 40 Degrees Rotation |
| Contact Form | 2 NO |
| Action | Momentary |
| Operator Head Material | Polycarbonate |
| Cam | No Cam Required |
| Color | Black |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Bezel Material | Silver |
| Position | 3 |
| Bezel Color | Silver |
| Key Removal | No Key |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position B | OO |
| NEMA Contact Rating Designation | A600 |
| Standards | CSA, EN 60947, IEC 60947, UL Listed |
| IP Rating | IP65 |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24V DC |
| Switch Operation @ Position A | XO |
| Switch Operation @ Position C | OX |
| Includes | Assembled Pushbutton |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | C22 |
| AC Contact Rating | 1.5 A @ 230 V |
| DC Contact Rating | 3 A @ 24 V |
| Illumination | Non-illuminated |
| Actuator | Knob |
| Type | switch |
| Button color | Black, white |
| Number Of Positions | 3 |
| Certifications | EN 60947 |
| Product Height | 2.83 in |
| Actuator function | Momentary, 40° |
| Contact configuration | 2 NO |
| Product Width | 1.17 in |
| Compliances | DIN VDE 0600 |
| Bezel | Silver |
| Product Length/Depth | 1.17 in |
| Product Name | Eaton C22 compact pushbutton |
| Metal Operator Head Finish | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Width | 1.17 in |
| Manufacturer Warranty Length | 1 yr |
| NEMA Enclosure Rating | 3, 13, 12, 1, 4X |
| Operator Illumination | Non-Illuminated |
| Key Removal Position | Not Applicable |
| Overall Height | 2.83 in |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
| Overall Depth | 1.17 in |
| Operator Head Type | Short-Handled Knob |
| Operator Head Color | Black |
| Includes Operator Key | Not Applicable |
| Switch Function @ 1st Position | On |
| Contact Block Material | Plastic |
| Panel Cutout Diameter | 22 mm |
| Switch Function @ 3rd Position | On |
| Package Quantity | 1 |
