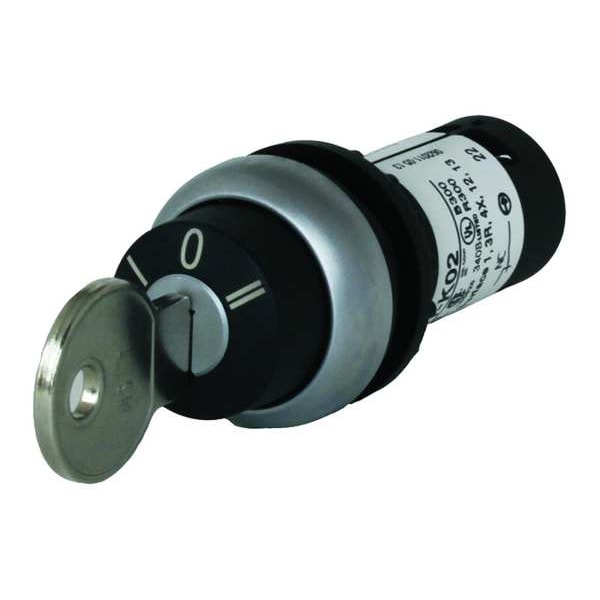

Interruptor selector no iluminado, 3P, 1NC, 22mm.
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Plastic |
| Type of Operator | Keyed, Number MS1 |
| Action | Maintained, Momentary |
| Contact Form | 1NO/1NC |
| Cam | No Cam |
| Operator Head Material | Polycarbonate |
| Color | Black |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Position | 3 |
| Bezel Material | Polycarbonate |
| Key Removal | Center |
| Bezel Color | Silver |
| Switch Operation @ Position A | XO |
| Switch Operation @ Position B | OO |
| NEMA Contact Rating Designation | A600 |
| IP Rating | IP65 |
| Switch Operation @ Position D | No Fourth Position |
| Includes | Assembled Pushbutton |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24V DC |
| Switch Operation @ Position C | OX |
| Standards | CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660 |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| Series | C22 |
| Button color | Black |
| Product Length/Depth | 1.17 in |
| Compliances | DIN VDE 0600 |
| Product Height | 3.63 in |
| Actuator function | Momentary, key removal center |
| Contact configuration | 1 NO-1 NC |
| Certifications | CSA Certified |
| Type | switch |
| Product Width | 1.17 in |
| Illumination | Non-illuminated |
| Number Of Positions | 3 |
| Bezel | Silver |
| Actuator | Key operated |
| Product Name | Eaton C22 compact pushbutton |
| Switch Function @ 4th Position | No Fourth Position |
| Lamp Voltage - Maximum | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Operator Head Type | Keyed |
| Operator Illumination | Non-Illuminated |
| Switch Function @ 2nd Position | Off |
| Metal Operator Head Finish | Not Applicable |
| NEMA Enclosure Rating | 3, 13, 12, 1, 4X |
| Key Removal Position | Center |
| Switch Function @ 3rd Position | On |
| Switch Function @ 1st Position | On |
| Package Quantity | 1 |
