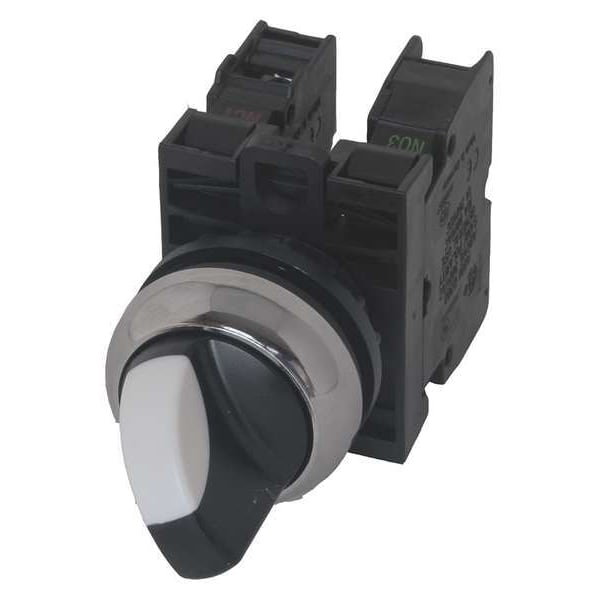

Selector de interruptor no iluminado, Aluminio, Metal, 3 Polos
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Knob with 40 Degrees Rotation |
| Contact Form | 2 NO |
| Action | Maintained |
| Cam | No Cam Required |
| Operator Head Material | Metal |
| Color | Black |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Position | 3 |
| Bezel Material | Metal |
| Key Removal | No Key |
| Bezel Color | Chrome |
| Includes | Advanced Technology and Sealing Provides Industry Leading IP66 Water Resistant Technology, 100,000 Mechanical Operations Rated Life |
| Contact Rating | 3A @ 24 DC, 6A @ 230V AC |
| NEMA Contact Rating Designation | A600 |
| IP Rating | IP69K, IP67 |
| Switch Operation @ Position C | OX |
| Switch Operation @ Position A | XO |
| Standards | BV, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position B | OO |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | M22 |
| DC Contact Rating | 3 A @ 24 V |
| AC Contact Rating | 6 A @ 230 V |
| Switch Function @ 1st Position | On |
| Hazardous Location Specification | Not Rated |
| Number of Positions | 3 |
| Overall Width | 2 in |
| Manufacturer Warranty Length | 1 yr |
| Key Removal Position | Not Applicable |
| Switch Function @ 2nd Position | Off |
| Operator Head Color | Black |
| Overall Height | 1 in |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Includes Operator Key | Not Applicable |
| Contact Block Material | Plastic |
| Panel Cutout Diameter | 22 mm |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Type | Short-Handled Knob |
| Overall Depth | 2 in |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Package Quantity | 1 |
