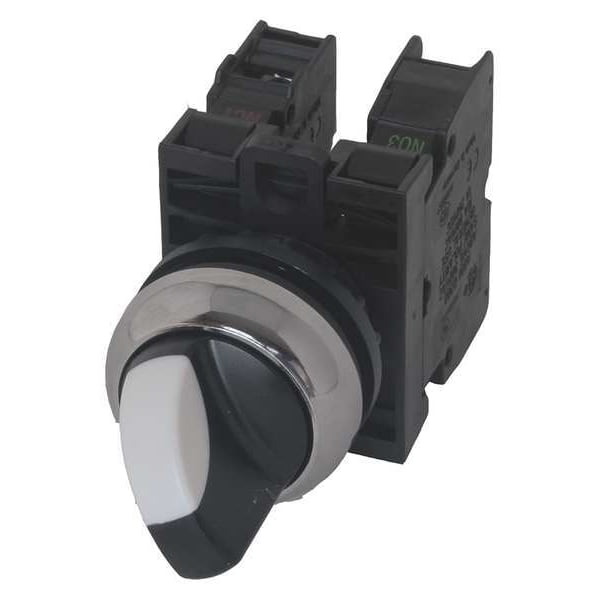

Interruptor selector sin iluminación, perilla, metal, 4A.
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Knob with 40 Degrees Rotation |
| Action | Maintained |
| Contact Form | 1NO/1NC |
| Cam | No Cam Required |
| Operator Head Material | Metal |
| Color | Black |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Bezel Material | Metal |
| Position | 2 |
| Bezel Color | Chrome |
| Key Removal | No Key |
| Switch Operation @ Position C | No Third Position |
| Switch Operation @ Position D | No Fourth Position |
| Standards | BV, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| IP Rating | IP69K, IP67 |
| Switch Operation @ Position B | X |
| Includes | Advanced Technology and Sealing Provides Industry Leading IP66 Water Resistant Technology, 100,000 Mechanical Operations Rated Life |
| Switch Operation @ Position A | X |
| NEMA Contact Rating Designation | A600 |
| Contact Rating | 3A @ 24 DC, 6A @ 230V AC |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| AC Contact Rating | 6 A @ 230 V |
| Series | M22 |
| DC Contact Rating | 3 A @ 24 V |
| Operating mode | Maintained |
| Certifications | VDE |
| Enclosure | NEMA 13 |
| Contact configuration | 1 NO-1 NC |
| Bezel | Metal |
| Illumination | Non-illuminated |
| Environmental rating | IP67, IP69K (IP66 key-release) |
| Product Height | 1-1/2 in |
| Product Width | 5 in |
| Number Of Positions | 2 |
| Product Length/Depth | 7 in |
| Product Name | Eaton M22 modular pushbutton |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Head Color | Black |
| Switch Function @ 2nd Position | On |
| Hazardous Location Specification | Not Rated |
| Operator Head Type | Short-Handled Knob |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 7 in |
| Includes Operator Key | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| Manufacturer Warranty Length | 1 yr |
| Overall Width | 5 in |
| Operator Illumination | Non-Illuminated |
| Contact Block Material | Plastic |
| Switch Function @ 1st Position | On |
| Overall Height | 1-1/2 in |
| Key Removal Position | Not Applicable |
| Switch Function @ 3rd Position | No Third Position |
| Package Quantity | 1 |
