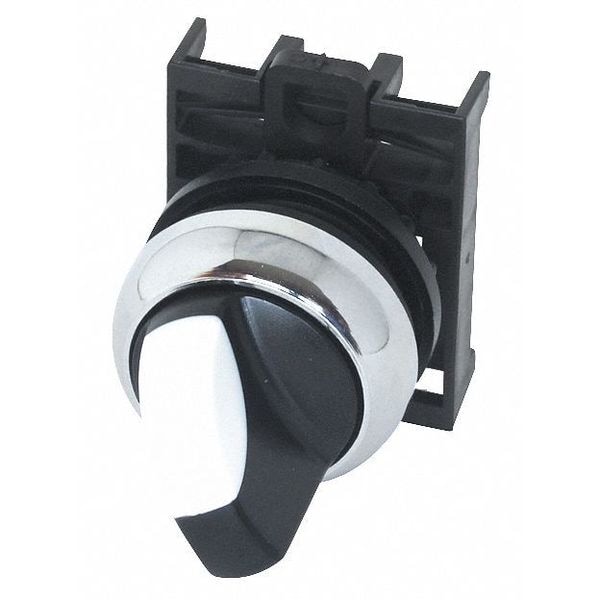

Selector de interruptor sin iluminación, 22mm, 2 posiciones, perilla.
| Item | Short-Handled Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Knob |
| Action | Maintained |
| Operator Head Material | Metal |
| Cam | No Cam Needed |
| Operator Color | Black |
| Color | Black |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Position | 2 |
| Bezel Material | Metal |
| Key Removal | No Key |
| Bezel Color | Chrome |
| Key Number | No Key |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position C | No Third Position |
| IP Rating | IP69K, IP67, IP66 |
| Standards | VDE |
| Includes | Advanced Technology and Sealing Provides Industry Leading IP66 Water Resistant Technology, 100,000 Mechanical Operations Rated Life |
| Switch Operation @ Position A | X |
| Switch Operation @ Position B | X |
| Series | M22 |
| Enclosure | NEMA 4X |
| Operating mode | Maintained |
| Bezel | Metal |
| Product Length/Depth | 1 in |
| Product Height | 1/2 in |
| Illumination | Non-illuminated |
| Product Width | 1 in |
| Environmental rating | IP67, IP69K (IP66 key-release) |
| Special Features | Includes contact block mounting adapter |
| Certifications | VDE |
| Type | M22 Pushbutton Operator |
| Product Name | Eaton M22 modular pushbutton |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
| Number of Positions | 2 |
| Switch Function @ 3rd Position | No Third Position |
| Overall Width | 1 in |
| Switch Function @ 2nd Position | On |
| Key Removal Position | Not Applicable |
| NEMA Enclosure Rating | 13, 4X |
| Operator Illumination | Non-Illuminated |
| Operator Head Type | Short-Handled Knob |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 2.78 in |
| Switch Function @ 1st Position | On |
| Operator Head Color | Black |
| Includes Operator Key | Not Applicable |
| Overall Height | 1 in |
| Package Quantity | 1 |
