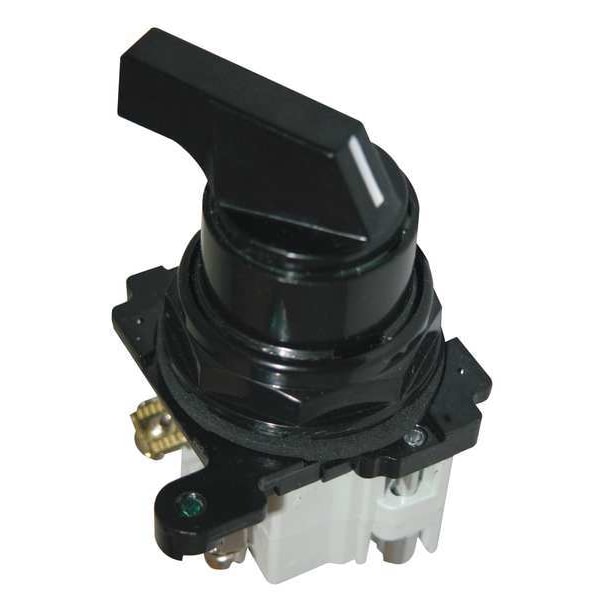

Interruptor selectivo no iluminado, 30mm, 2 posiciones, palanca.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained |
| Contact Form | 1NO/1NC |
| Operator Head Material | Polymer |
| Cam | 1 |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Bezel Material | Zinc |
| Position | 2 |
| Bezel Color | Black |
| Key Removal | No Key |
| Standards | CE, CSA, FDA 3-A, UL Listed |
| Switch Operation @ Position A | XO |
| IP Rating | IP68 |
| Switch Operation @ Position C | No Third Position |
| Includes | Assembled Pushbutton |
| Contact Rating | 10A @ 600V AC |
| Switch Operation @ Position D | No Fourth Position |
| NEMA Contact Rating Designation | A600, P600 |
| Switch Operation @ Position B | OX |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| AC Contact Rating | 10 A @ 600 V |
| Series | E34 |
| DC Contact Rating | 5 A @ 250 V |
| Number Of Positions | 2 |
| Cam code | Cam 1 |
| Illumination | Non-illuminated |
| Compliances | CE Marked |
| Certifications | CSA Certified |
| Contact configuration | 1 NO-1 NC |
| Product Height | 1 in |
| Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Type | 30.5 mm, Corrosion Resistant |
| Actuator color | Black |
| Product Length/Depth | 1 in |
| Product Width | 1 in |
| Throw type | 60° |
| Actuator | Knob |
| Product Name | Eaton E34 pushbutton |
| Overall Height | 1 in |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Switch Function @ 4th Position | No Fourth Position |
| Overall Depth | 1 in |
| Contact Block Material | Metal |
| Operator Illumination | Non-Illuminated |
| Operator Head Color | Black |
| Operator Head Type | Short-Handled Knob |
| Overall Width | 1 in |
| Panel Cutout Diameter | 30 mm |
| Manufacturer Warranty Length | 1 yr |
| Switch Function @ 3rd Position | No Third Position |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 1st Position | On |
| Includes Operator Key | Not Applicable |
| Key Removal Position | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Switch Function @ 2nd Position | On |
| Metal Operator Head Finish | Not Applicable |
| Package Quantity | 1 |
