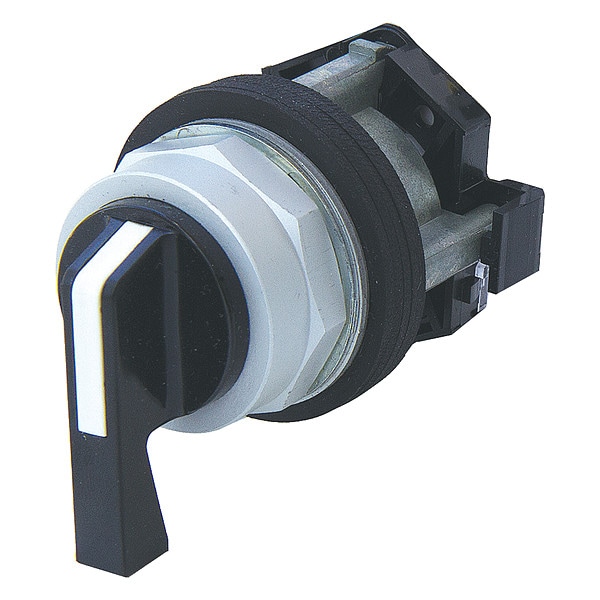

Interruptor selector no iluminado, 30 mm, 3 posiciones, palanca.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained, Momentary |
| Contact Form | 2NC, 2NO |
| Cam | 1D |
| Operator Head Material | Polymer |
| Color | Black |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Bezel Material | Chrome |
| Position | 3 |
| Bezel Color | Black |
| Key Removal | No Key |
| Switch Operation @ Position B | OXO |
| Switch Operation @ Position D | No Fourth Position |
| Contact Rating | 10A @ 600V AC |
| Switch Operation @ Position C | OOX |
| Includes | Assembled Pushbutton |
| Standards | CSA, UL Listed |
| NEMA Contact Rating Designation | A600, P600 |
| Switch Operation @ Position A | XOO |
| IP Rating | IP68 |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| DC Contact Rating | 5 A @ 250 V |
| AC Contact Rating | 10 A @ 600 V |
| Series | HT800 |
| Bezel | Chrome |
| Operating mode | Momentary, maintained, maintained |
| Actuator color | Black |
| Type | 30.5 mm, Oiltight-HT800, Watertight |
| Product Height | 1.4 in |
| Certifications | UL Listed |
| Product Length/Depth | 5.53 in |
| Contact configuration | 2 NO 2 NC |
| Product Width | 2 in |
| Illumination | Non-illuminated |
| Number Of Positions | 3 |
| Actuator | Lever |
| Enclosure | NEMA 12 |
| Product Name | Eaton HT800 pushbutton |
| Switch Function @ 1st Position | On |
| Manufacturer Warranty Length | 1 yr |
| Switch Function @ 3rd Position | On |
| Contact Block Material | Metal |
| Key Removal Position | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Color | Black |
| Metal Operator Head Finish | Not Applicable |
| Switch Function @ 2nd Position | On |
| Panel Cutout Diameter | 30 mm |
| Overall Width | 2 in |
| Includes Operator Key | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Height | 1.4 in |
| Operator Illumination | Non-Illuminated |
| Operator Head Type | Long-Handled Knob |
| Overall Depth | 5.53 in |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Package Quantity | 1 |
