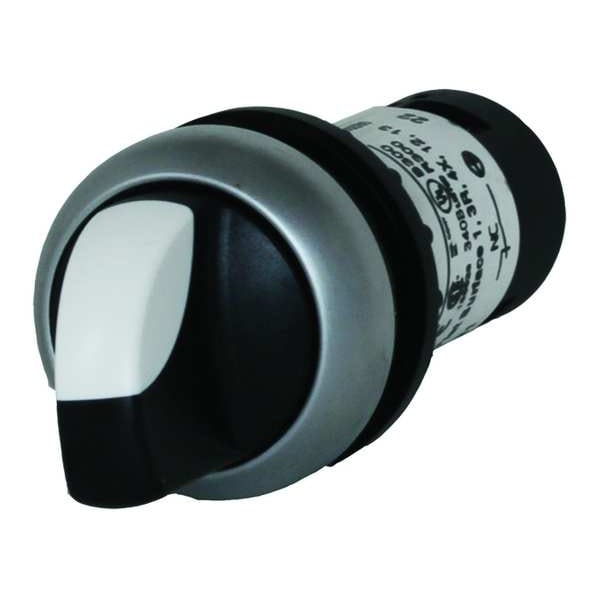

Selector de interruptor no iluminado, 1 abierto/1 cerrado, negro
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Plastic |
| Type of Operator | Knob with 40 Degrees Rotation |
| Contact Form | 1NO/1NC |
| Action | Maintained, Momentary |
| Operator Head Material | Polycarbonate |
| Cam | No Cam |
| Color | Black |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Bezel Material | Polycarbonate |
| Position | 2 |
| Bezel Color | Silver |
| Key Removal | No Key |
| NEMA Contact Rating Designation | A600 |
| Switch Operation @ Position B | X |
| Standards | CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL Listed, VDE 0660 |
| Includes | Assembled Pushbutton |
| Switch Operation @ Position A | X |
| IP Rating | IP65 |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position C | No Third Position |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24V DC |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | C22 |
| Certifications | IEC 60947 |
| Actuator function | Momentary, 40° |
| Button color | Black, white |
| Product Width | 1.17 in |
| Compliances | DIN VDE 0600 |
| Actuator | Knob |
| Illumination | Non-illuminated |
| Product Length/Depth | 1.17 in |
| Type | switch |
| Number Of Positions | 2 |
| Bezel | Silver |
| Product Height | 2.83 in |
| Contact configuration | 1 NO-1 NC |
| Product Name | Eaton C22 compact pushbutton |
| Lamp Voltage - Maximum | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| NEMA Enclosure Rating | 3, 13, 12, 1, 4X |
| Switch Function @ 2nd Position | On |
| Operator Illumination | Non-Illuminated |
| Key Removal Position | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Function @ 1st Position | On |
| Metal Operator Head Finish | Not Applicable |
| Switch Function @ 3rd Position | No Third Position |
| Package Quantity | 1 |
