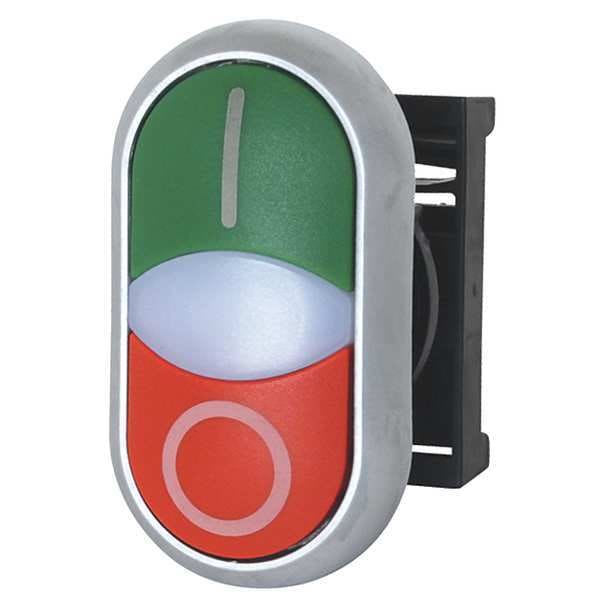

Operador Multi-Cabeza No Iluminado, 22 mm, Ovalado
| Action | Momentary |
|---|---|
| Number of Heads | 2 |
| Size | 22 mm |
| Head Material | Metal |
| Legend/Background Color | White, Red, Green |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | (2) Flush Buttons |
| Lamp Type | Not Applicable |
| Legend | O, I |
| Bezel | Silver |
| Number of Operators | 2 |
| Shape | Oval |
| Item | Extended Push Button |
| Bezel Material | Silver |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Includes | Silver Bezel with Green Top and Red Bottom |
| IP Rating | IP67, IP69K |
| Terminal Connection | Screw Clamp |
| Features | Includes Contact Block Mounting Adapter |
| Lamp Module Type | Not Applicable |
| Series | M22 |
| Type | 22.5 mm Modular |
| Product Height | .52 IN |
| Certifications | CSA Certified |
| Product Length/Depth | 2.15 in |
| Operating cycles | Light 100,000 hours, Button 200,000 operations |
| Product Width | 1.17 in |
| Actuator | Extended, dual button |
| Illumination | Illuminated |
| Environmental rating | IP66, NEMA 4X, 13 |
| Button color | Red, green |
| Special features | M22 series |
| Application | Pushbutton |
| Compliances | CE Marked |
| Inscription | Bottom O, Top I |
| Product Name | Eaton M22 modular pushbutton |
| Overall Depth | 2.15 in |
| Legend Color | White |
| Product Type | Push Button Operators |
| Maintained Action Release | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Lamp Voltage - Maximum | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Push Button Style | Extended |
| Overall Height | 0.52 in |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Minimum | -13 deg F |
| Legend Background Color | Green |
| Manufacturer Warranty Length | 1 yr |
| Number of Indicator Lights | 0 |
| Operator Material | Polycarbonate |
| Head Color | Red, Green |
| Overall Width | 1.17 in |
| Hazardous Location Specification | Not Rated |
| Mushroom Head Diameter | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Package Quantity | 1 |
