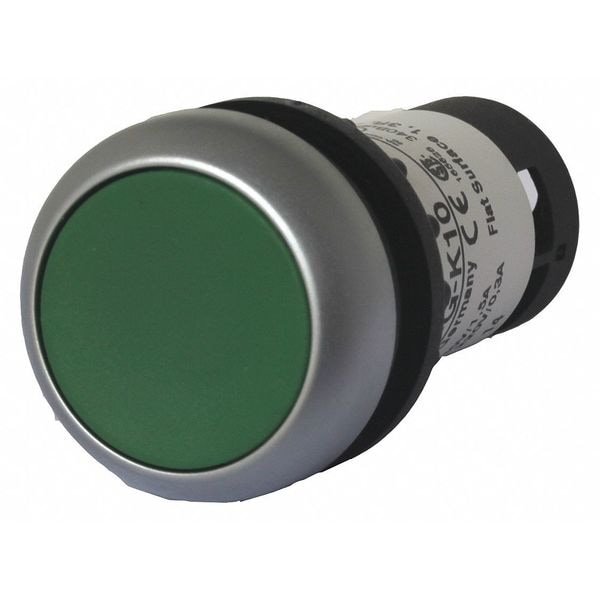

Botón pulsador no iluminado, 22 mm, 1 contacto normalmente abierto, color verde.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Plastic |
| NEMA Rating | 1, 12, 13, 3, 4X |
| Type of Operator | Flush Button |
| Lamp Type | Not Applicable |
| Contact Form | 1NO |
| Color | Green |
| Bezel | Silver Nylon |
| Legend | No Legend |
| Number of Operators | 1 |
| Contact Rating | 1.5A @ 230V AC, 3A @ 24V DC |
| Item | Flush Push Button Operator |
| Bezel Material | Nylon |
| Standards | CSA, DIN VDE 0600, EN 60947, IEC-60947, UL Listed |
| NEMA Contact Rating Designation | A600 |
| Terminal Connection | Screw Clamp |
| IP Rating | IP67, IP69K |
| Basic Material | Plastic |
| Material | Plastic |
| Features | Completely Sealed |
| DC Contact Rating | 3 A @ 24 V |
| Series | C22 |
| AC Contact Rating | 1.5 A @ 230 V |
| Lamp Module Type | Not Applicable |
| Type | Pushbutton |
| Product Type | Push Button Operators |
| Product Length/Depth | 1.17 in |
| Actuator | button |
| Product Height | 2.15 in |
| Operating mode | Momentary |
| Enclosure | IP69K |
| Actuator function | Momentary |
| Product Width | 1.17 in |
| Actuator Color | Green |
| Button color | green |
| Degree of protection | NEMA 4X |
| Contact configuration | 1 NO |
| Mounting method | Flush |
| Compliances | DIN VDE 0600 |
| Actuator Material | Plastic |
| Illumination | Non-illuminated |
| Operating cycles | 5 million |
| Certifications | UL Listed |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 1 yr |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 1.17 in |
| Operating Temperature - Maximum | 158 deg F |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Minimum | -13 deg F |
| Push Button Style | Flush |
| Operator Material | Plastic |
| Head Color | Green |
| NEMA Enclosure Rating | 13, 4X |
| Number of Indicator Lights | 0 |
| Overall Width | 1.17 in |
| Mushroom Head Diameter | Not Applicable |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Overall Height | 2.15 in |
| Operator Voltage Rating - Maximum | 230 V AC |
| Lamp Voltage - Maximum | Not Applicable |
| Package Quantity | 1 |
