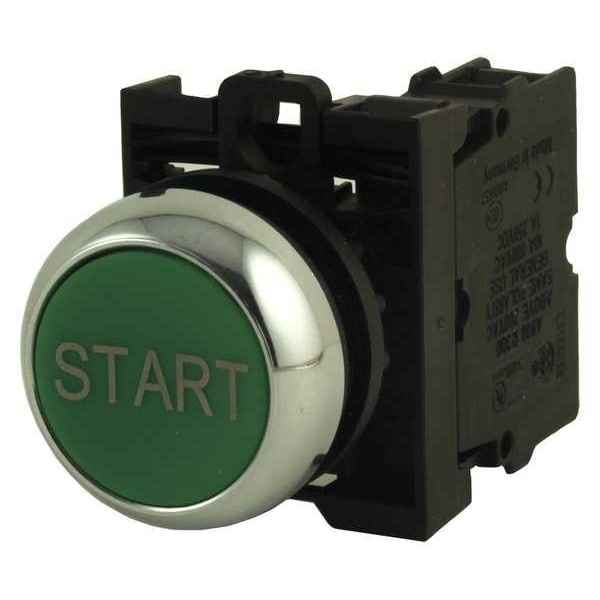

Botón pulsador no iluminado, 22 mm, 1NA, verde.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Legend/Background Color | White, Green |
| Head Material | Metal |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | Flush Button |
| Lamp Type | Not Applicable |
| Color | Green |
| Contact Form | 1NO |
| Legend | Start |
| Bezel | Die Cast Aluminum |
| Number of Operators | 1 |
| Item | Flush Push Button Operator |
| Contact Rating | 3A @ 24 DC, 6A @ 230V AC |
| Bezel Material | Metal |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Terminal Connection | Screw Clamp |
| NEMA Contact Rating Designation | A600 |
| Includes | Metal Bezel with START Engraved |
| IP Rating | IP66, IP67, IP69K |
| Material | metal |
| Basic Material | Metal |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| Series | M22 |
| Type | Modular pushbutton |
| Lamp Module Type | Not Applicable |
| AC Contact Rating | 6 A @ 230 V |
| DC Contact Rating | 3 A @ 24 V |
| Product Type | Push Button Operators |
| Inscription | START |
| Operating mode | Flush momentary |
| Enclosure | NEMA 13 |
| Product Height | 1-1/4 in |
| Contact configuration | 1 NO |
| Environmental rating | IP67, IP69K (IP66 key-release) |
| Product Width | 5 in |
| Button color | green |
| Product Length/Depth | 8 in |
| Product Name | Eaton M22 modular pushbutton |
| Certifications | UL Listed;CSA Certified |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Manufacturer Warranty Length | 1 yr |
| Operator Illumination | Non-Illuminated |
| Operator Material | Metal |
| Number of Indicator Lights | 0 |
| Head Color | Green |
| Lamp Voltage - Maximum | Not Applicable |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Legend Background Color | Green |
| Legend Color | White |
| Overall Width | 1 in |
| Panel Cutout Diameter | 22 mm |
| Mushroom Head Diameter | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Overall Depth | 2.26 in |
| Push Button Style | Flush |
| Overall Height | 1 in |
| Resistance Properties | Corrosion Resistant |
| Package Quantity | 1 |
