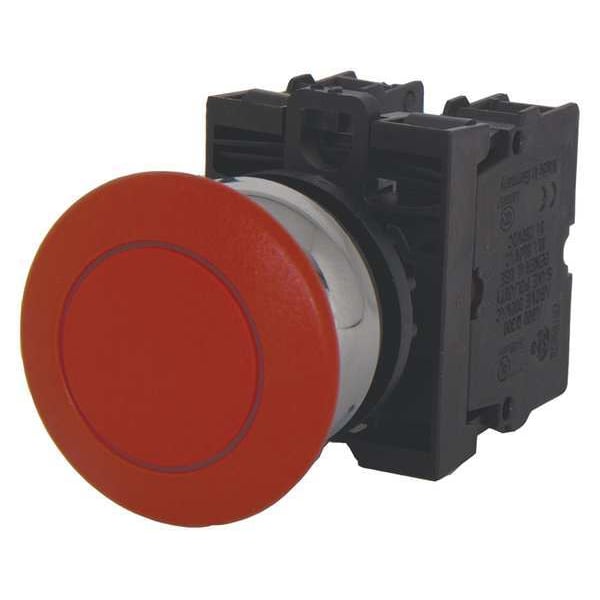

Botón pulsador no iluminado, 22 mm, 1 contacto normalmente abierto/1 contacto normalmente cerrado, color rojo.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | 35mm Mushroom Head |
| Lamp Type | Not Applicable |
| Color | Red |
| Contact Form | 1NO/1NC |
| Bezel | Die Cast Aluminum |
| Legend | No Legend |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Contact Rating | 3A @ 24 DC, 6A @ 230V AC |
| Bezel Material | Metal |
| NEMA Contact Rating Designation | A600 |
| IP Rating | IP67, IP69K |
| Material | metal |
| Basic Material | Metal |
| Includes | Metal Bezel |
| Terminal Connection | Screw Clamp |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| AC Contact Rating | 6 A @ 230 V |
| Lamp Module Type | Not Applicable |
| Type | Pushbutton |
| DC Contact Rating | 3 A @ 24 V |
| Series | M22 |
| Product Type | Push Button Operators |
| Contact configuration | 1 NO-1 NC |
| Operating mode | Momentary |
| Degree of protection | NEMA 13 |
| Actuator Color | Red |
| Certifications | CCC Marked |
| Actuator | Mushroom |
| Illumination | Non-illuminated |
| Environmental rating | IP67, IP69K |
| Button color | Red |
| Compliances | GoST-R |
| Enclosure | NEMA 4X |
| Product Height | 1-1/2 in |
| Product Length/Depth | 7 in |
| Product Width | 5 in |
| Product Name | Eaton M22 modular pushbutton |
| Operating Temperature - Minimum | -13 deg F |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Height | 1 in |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Maximum | 158 deg F |
| Overall Depth | 2.77 in |
| Head Color | Red |
| Overall Width | 1 in |
| Operator Illumination | Non-Illuminated |
| Resistance Properties | Corrosion Resistant |
| Number of Indicator Lights | 0 |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Operator Material | Metal |
| Mushroom Head Diameter | 40 mm |
| Push Button Style | Mushroom Head |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Manufacturer Warranty Length | 1 yr |
| Package Quantity | 1 |
